Smart Vision Technology for Consistent Product Integrity
Precision Inspection for Pharmaceutical Packaging
Fully automated vision inspection and rejection system is specifically developed for the pharmaceutical and medical industries to ensure the quality, safety, and compliance of medicinal bottle caps during the packaging process. It integrates seamlessly into high-speed production lines to deliver accurate, real-time inspection at every stage of bottle capping.

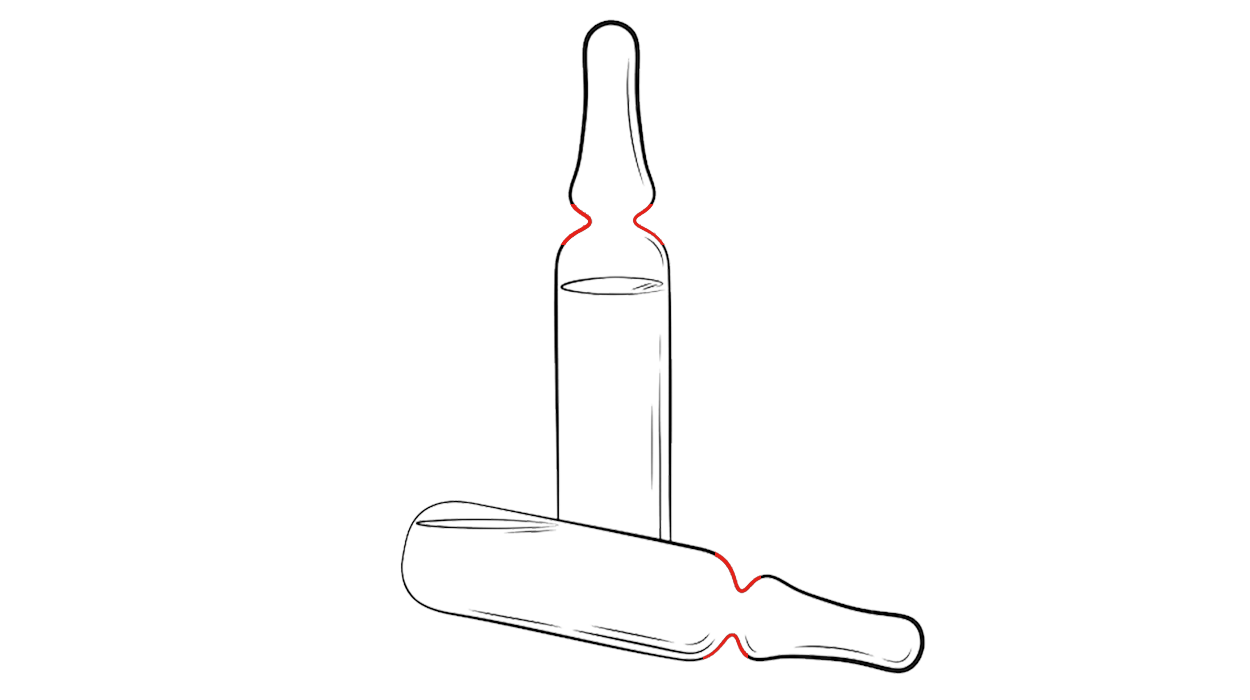

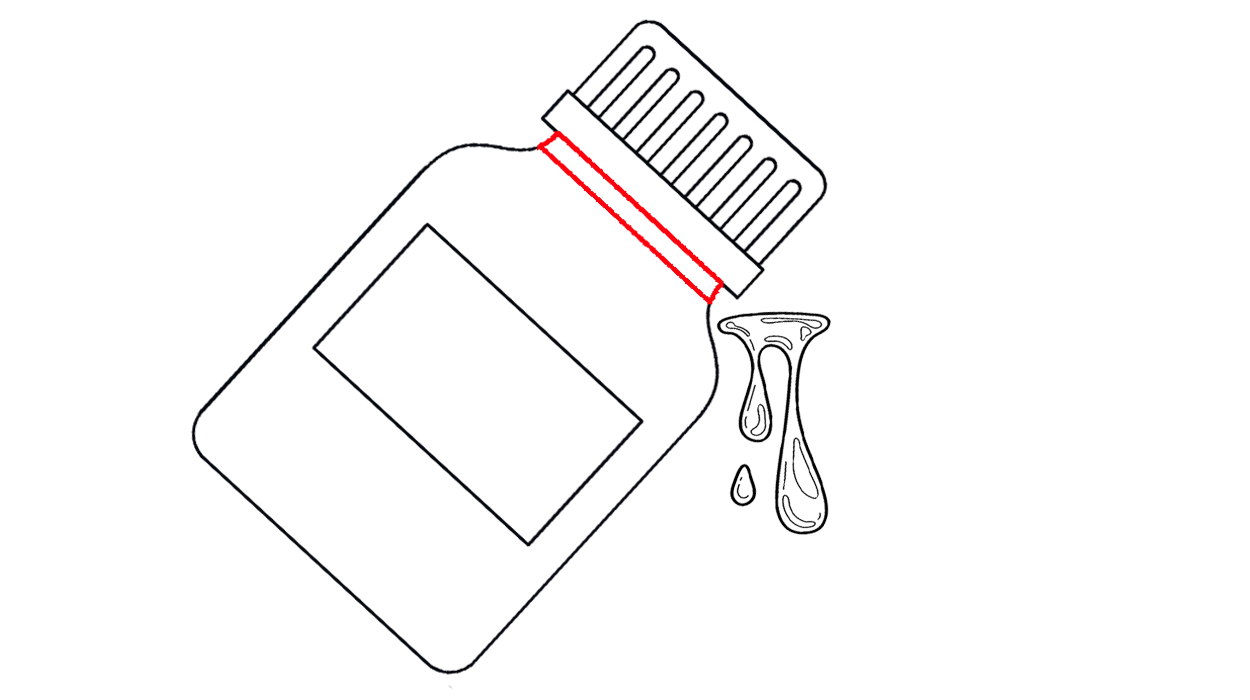

Automated inspections are capable of detecting a wide range of cap-related defects, including improper sealing, missing caps, skewed or loose caps, damaged or deformed caps, incorrect cap colors or types, foreign particles on the cap surface, and misaligned tamper-evident rings.
Flawless Seals, Safe Medicines
Vision-Guided Purity and Protection
A single defective bottle cap—whether it's misaligned, cracked, or improperly sealed—can compromise product integrity, lead to contamination risks, or violate compliance standards. That’s why pharmaceutical leaders rely on our Medicinal Bottle Cap Quality Control Vision Inspection System—an advanced, high-speed vision-based solution engineered to detect even the slightest defect, ensuring total packaging safety and regulatory compliance.
Designed for easy installation into existing bottling lines, with customizable configurations based on requirements.
| Pixel accuracy | 0.1mm/pixel | |
| Detection capacity | 800 cans/min | |
| Computer | Fanless Industrial Computer | |
| Camera | 1.3MP Color Industrial Camera | |
| False Positive Rate | Less than 0.0001% | |
| Waterproof Rating | IP54 | |
| Equipment Voltage | AC220/50Hz;120V/60Hz | |
| Optional configuration | Multi-camera version (Standard configuration is single camera) | |
| Rejection Method | Multiple Rejection Methods Available | |
| Object size for detection | Customizable based on requirements; Detection width can be expanded with multiple cameras. | |
After the warranty period, we offer:
