SCOPE OF APPLICATION
Suitable for foreign matter detection of various types of food, medicine, light industry and various products. It can detect metal, non-metal (such as glass, ceramics, stones,plastics, bones, high-density rubber, plastic, etc.) pollutants and other high-density pollutants in products.
Based on an AI-powered intelligent foreign object recognition algorithm, it features software self-learning capabilities, can integrate multiple defect detection algorithms, boasts a stable conveyor structure, and offers flexible design. During the production process, it provides robust quality control and assurance.
SAMPLE INSPECTION EXAMPLE
PRODUCT DESCRIPTION

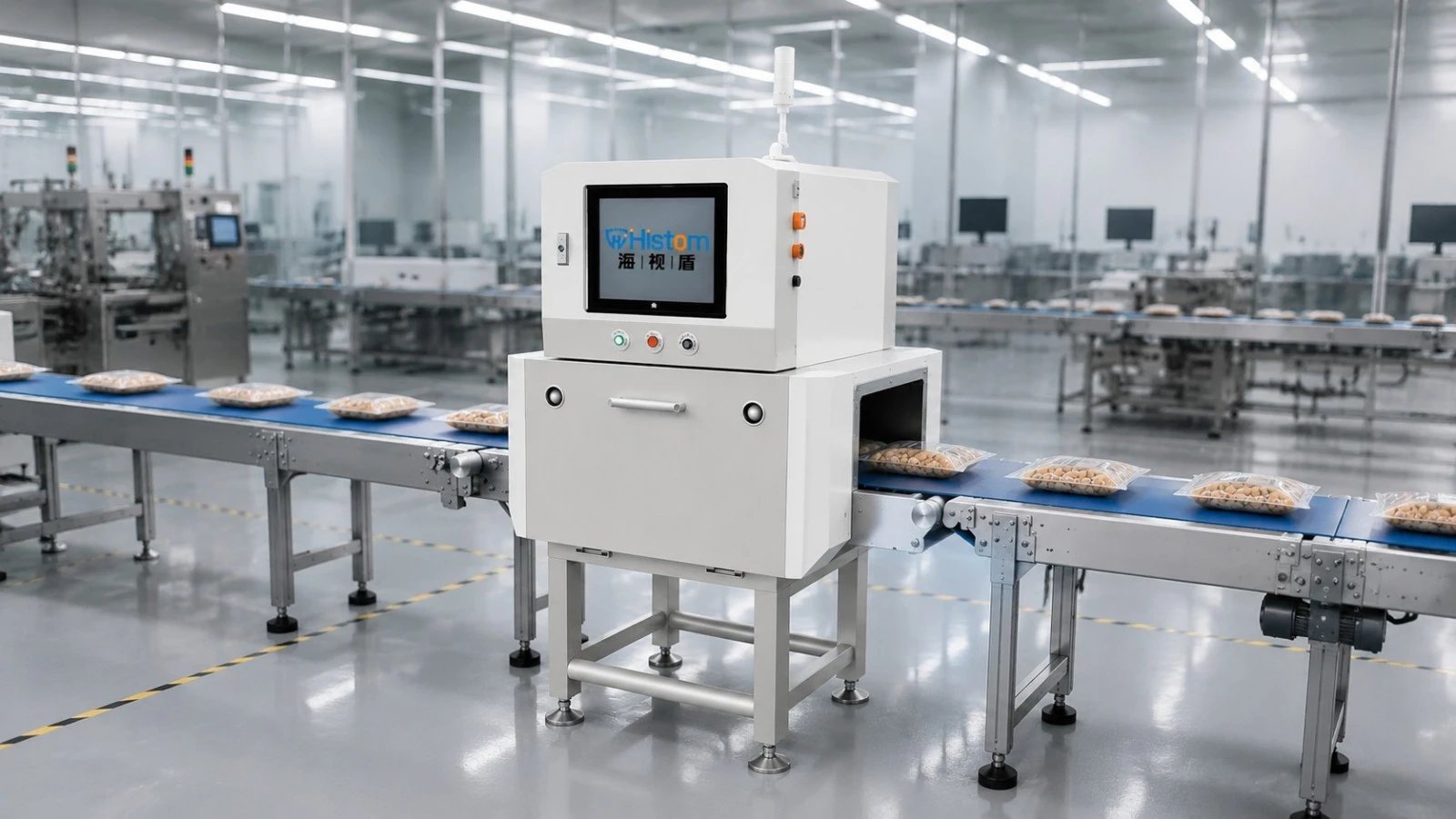

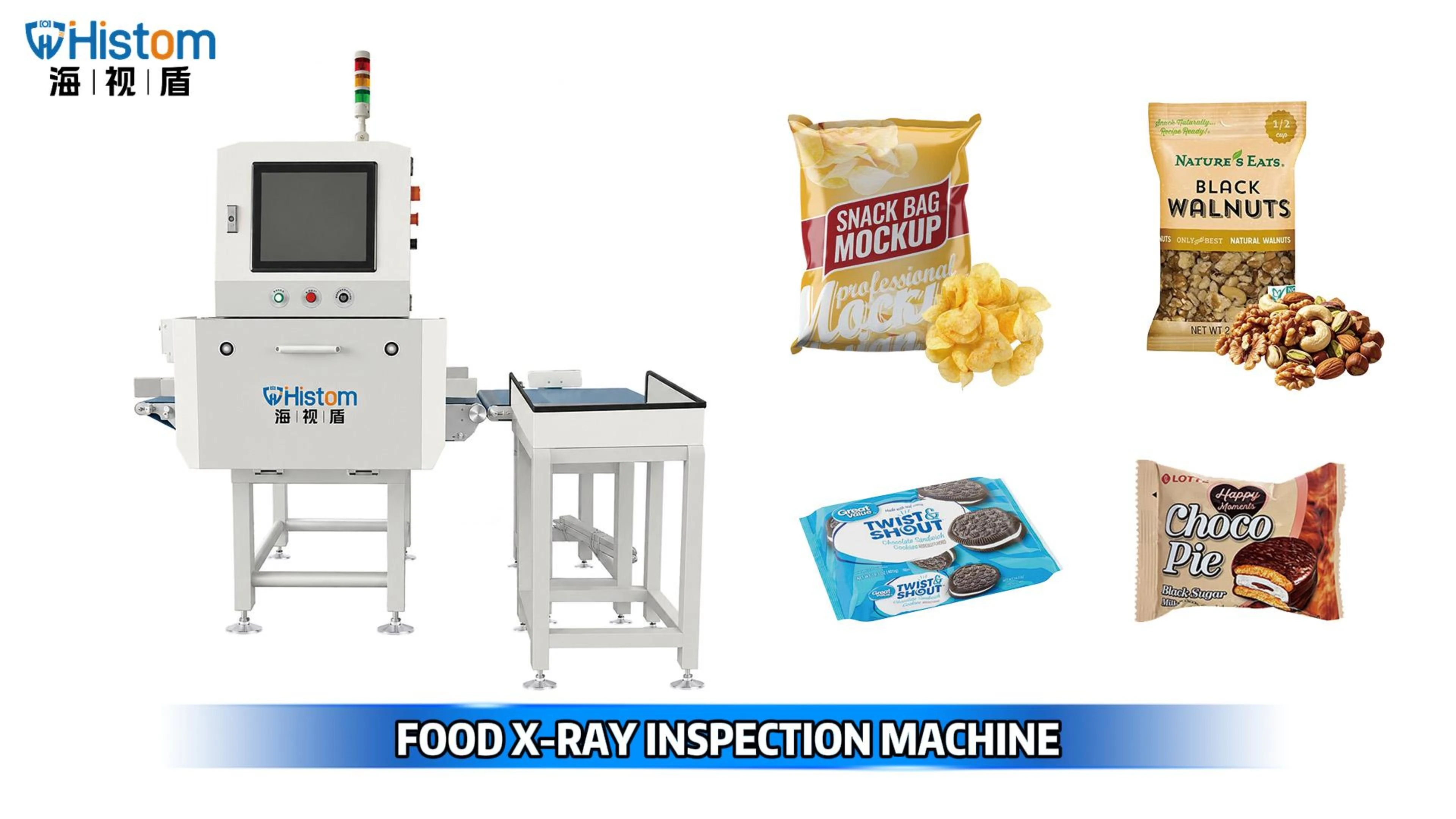

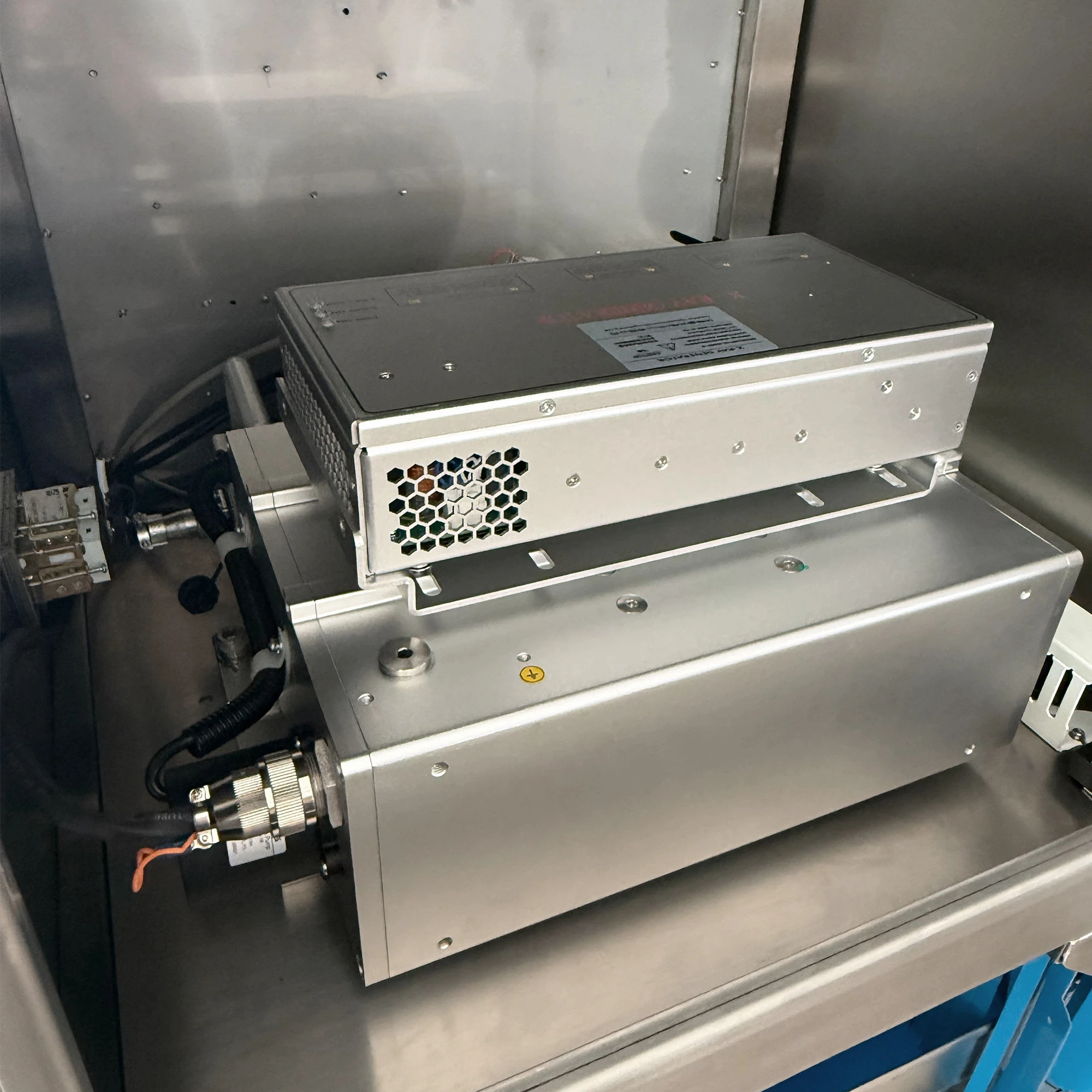

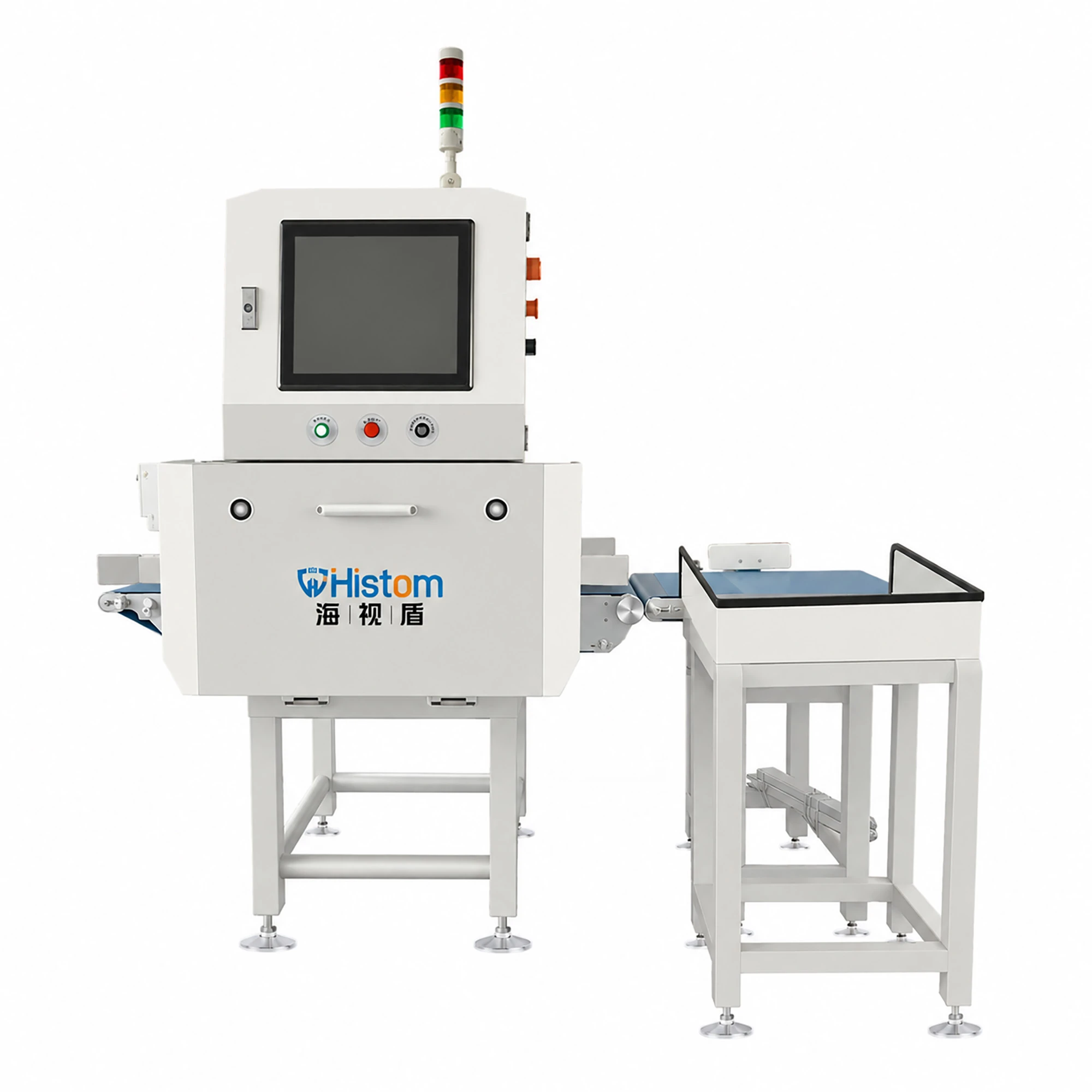

Suitable for foreign object detection in bags, boxes, and small parts of all food processing and pharmaceutical products. The device generates X-rays and utilizes their penetrating power, combining photoelectric technology with computer and digital signal processing technologies to identify and differentiate image information, detecting high-density foreign objects mixed in with the product, such as metals, ceramics, glass, bones, stones, and rubber.
PRODUCT FEATURES
The beam side-illumination detection method has a large penetration area, which improves detection accuracy.
X-ray leakage is less than 1 μ Sv/hour, which meets FDA and CE standards.
Fully shielded structure to prevent X-ray leakage accidents.
Radiation is less than 1 Gy, making it very safe for food.

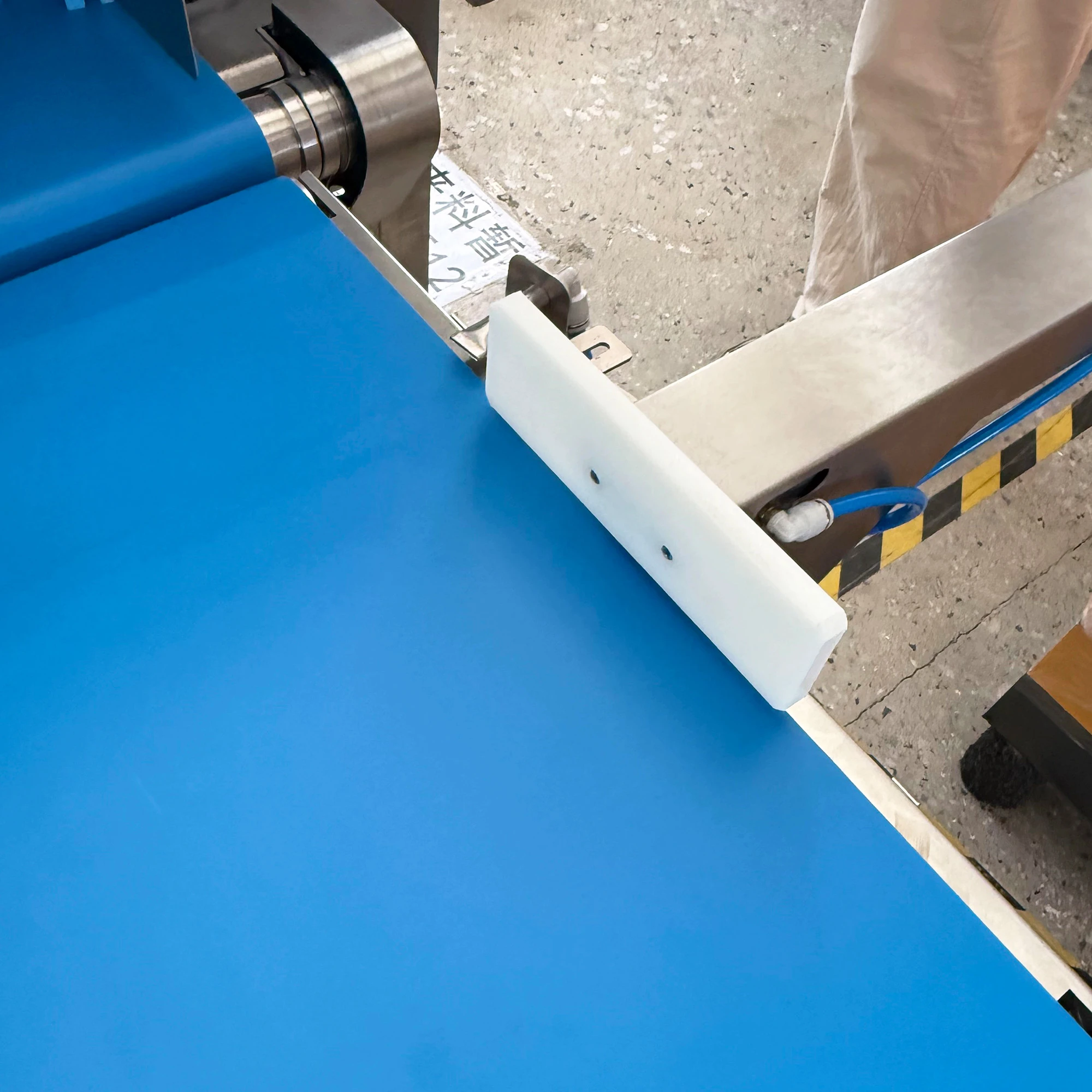

A rejection device can be equipped according to user needs.
WORKING PRINCIPLE
X-rays possess extremely high energy, enabling them to penetrate solid objects. Depending on the density of the object being inspected, X-rays are attenuated to a greater degree (in high-density areas) or a lesser degree (in low-density areas) as they pass through the product.
Detectors convert this residual radiation into electrical signals, thereby allowing density variations within the inspected object to be visualized in an image. The higher the density of the material, the darker it appears in the X-ray image, and vice versa.
Image processing software detects contrast differences within the image, highlights contaminants or missing products, and outputs corresponding signals.
PRODUCT SPECIFICATIONS
|
Model |
HXR-3017 |
HXR-4017 |
HXR-5026 |
HXR-6035 |
|
|
X-Ray Tube |
150W100KV |
210W100KV |
350W100KV |
210W100KV |
|
|
Aperture Height |
300mm |
400mm |
500mm |
600mm |
|
|
Aperture Width |
170mm |
170mm |
260mm |
350mm |
|
|
Conveying Speed |
10-70m/min |
||||
|
Sensitivity |
Stainless Steel Ball |
Ф0.3mm |
|||
|
Stainless Steel Wire |
Ф0.2*2mm |
||||
|
Ceramic |
Ф1.0mm |
||||
|
glass |
Ф1.0mm |
||||
|
Operation |
17-inch colored touch screen, Windows System |
||||
|
Rejector |
Sound and light alarm/alarm shutdown/rejection system |
||||
|
Power supply |
AC220V±10% 50Hz（60Hz) |
||||
|
Light source leakage |
＜1μSv/h(in line with international standards) |
||||
|
protection |

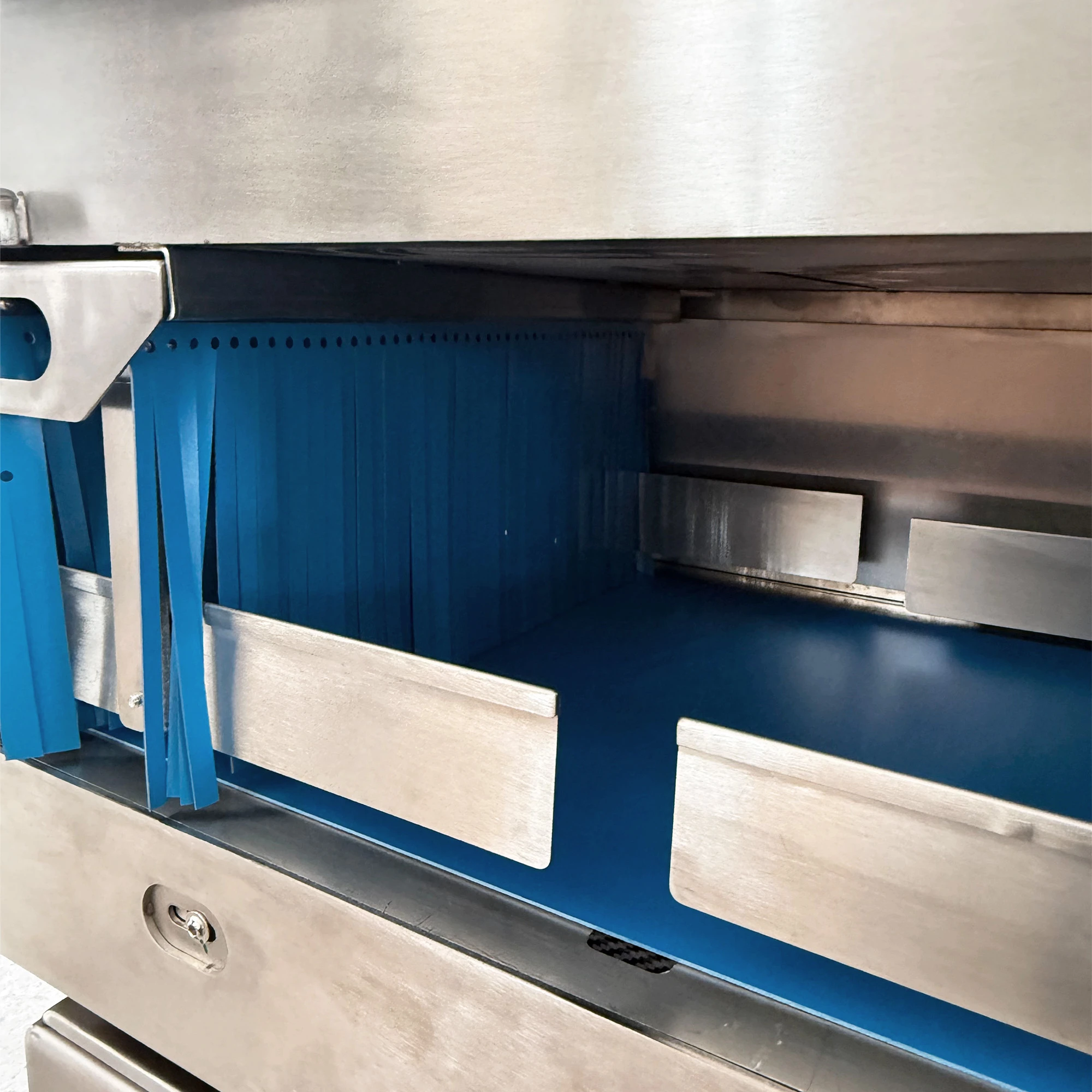

Removable protective curtain |
||||
|
Support data interface |
LAN Port, USB Port |
||||
|
Product Preset |
100 Types |
||||
|
Operation Direction |
Facing The Machine, Left In And Right Out |
||||
|
External Air Source |
0.6-1Mpa |
||||
|
Air Pressure Interface |
Φ8mm |
||||
|
Work Environment |
Temperature：0℃～40℃,Humidity:30%～95% |
||||
|
Main Materials |
SUS304 Stainless Steel |
||||

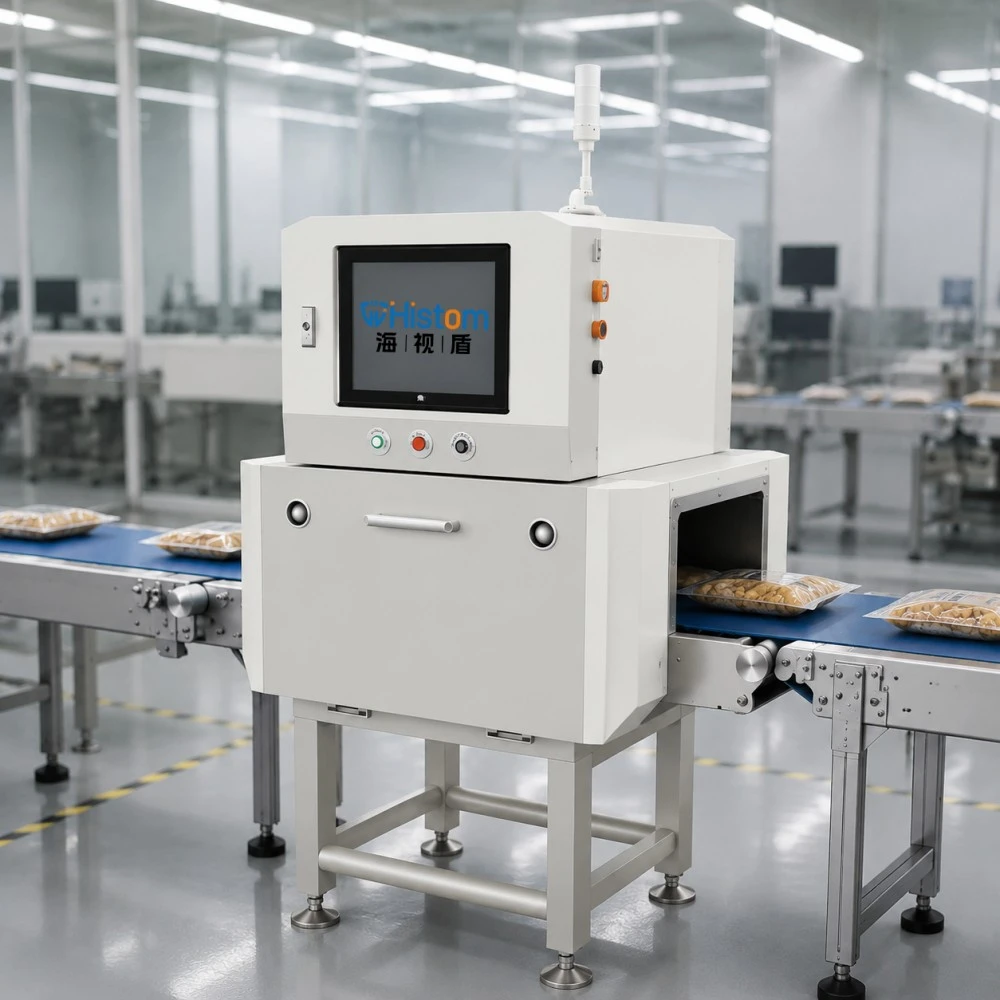

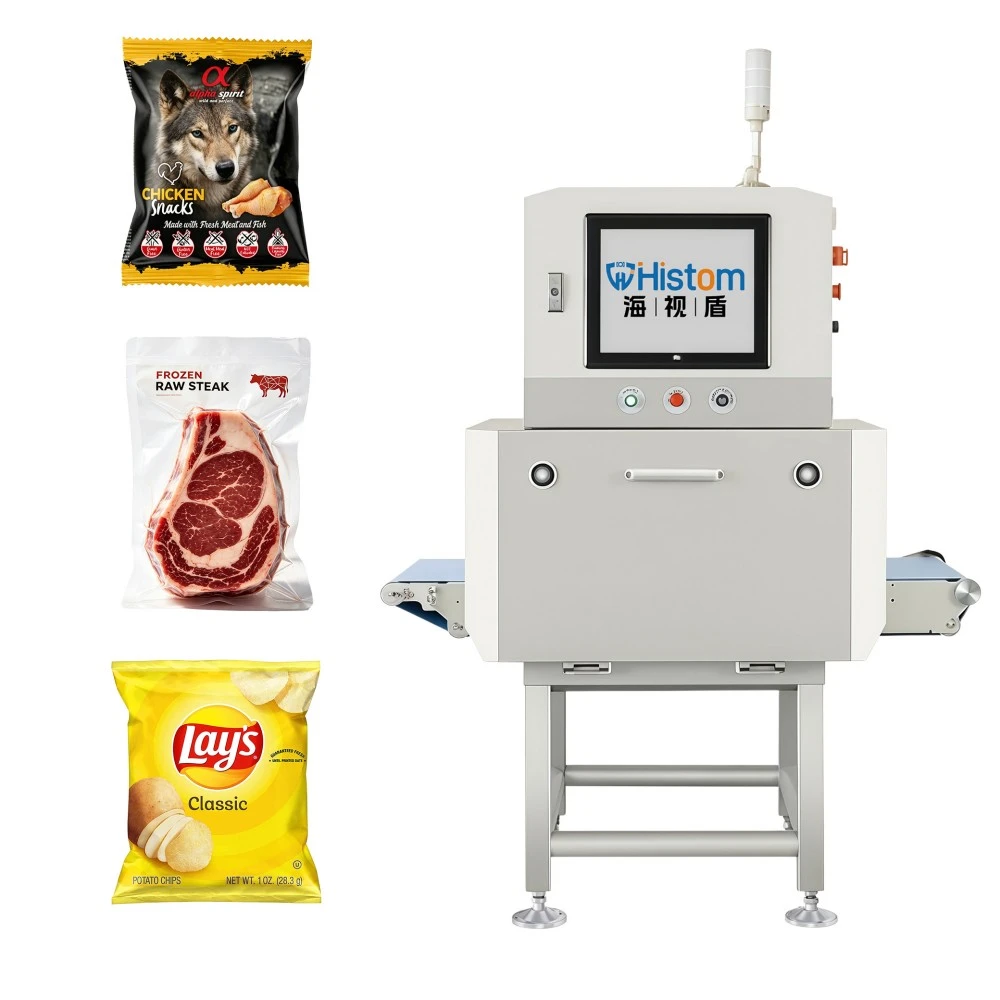

X-Ray Foreign Object Detection System for Bagged Products
