SCOPE OF APPLICATION
From snacks and biscuits to coffee powder, nuts, frozen foods, and ready-to-eat meals, HISTOM’s food metal detector helps you check packaged products for metal contamination before they reach your customers. Whether you use small bags, pouches, or other suitable packaging formats, we can help you find the right inspection solution for your products and production line.
This food metal detector is designed to detect ferrous metals, non-ferrous metals such as copper and aluminum, and stainless steel contaminants in packaged food products. Actual detection sensitivity depends on the product, packaging, contaminant type, and operating conditions.
SAMPLE INSPECTION EXAMPLE
PRODUCT DESCRIPTION

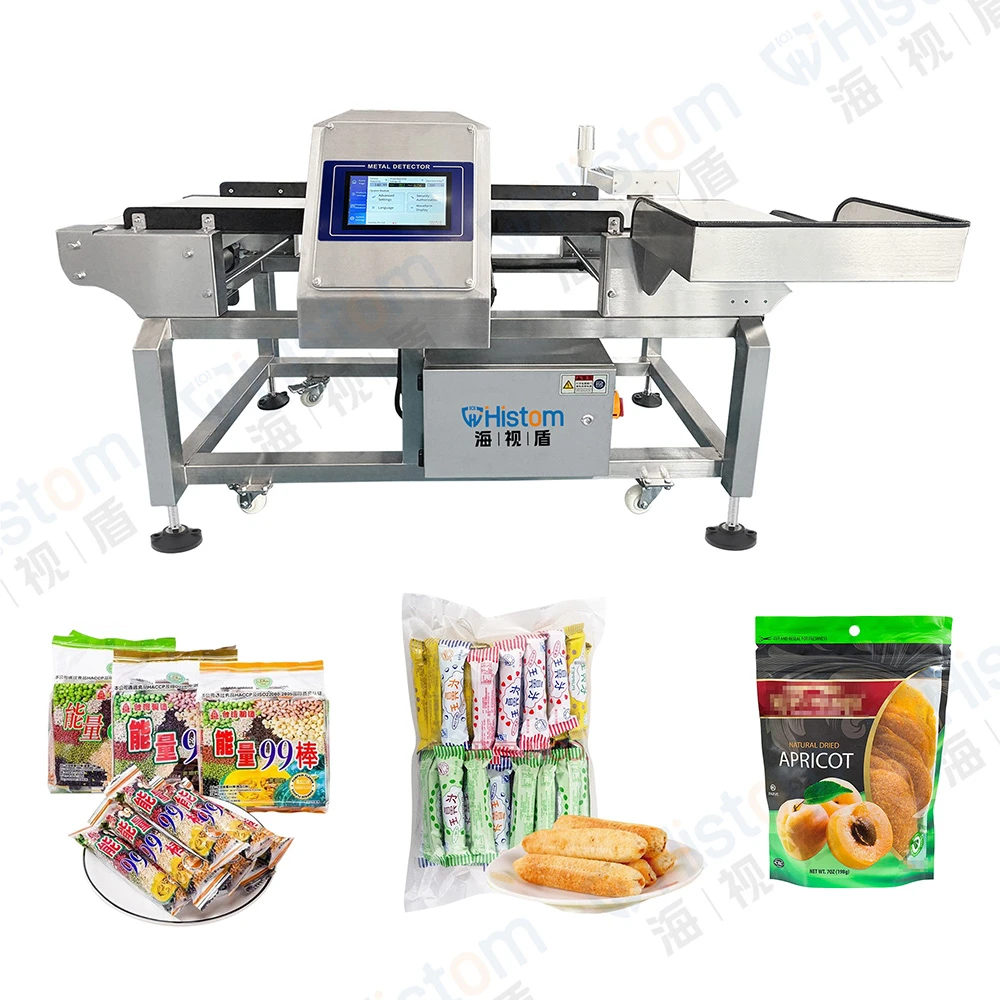

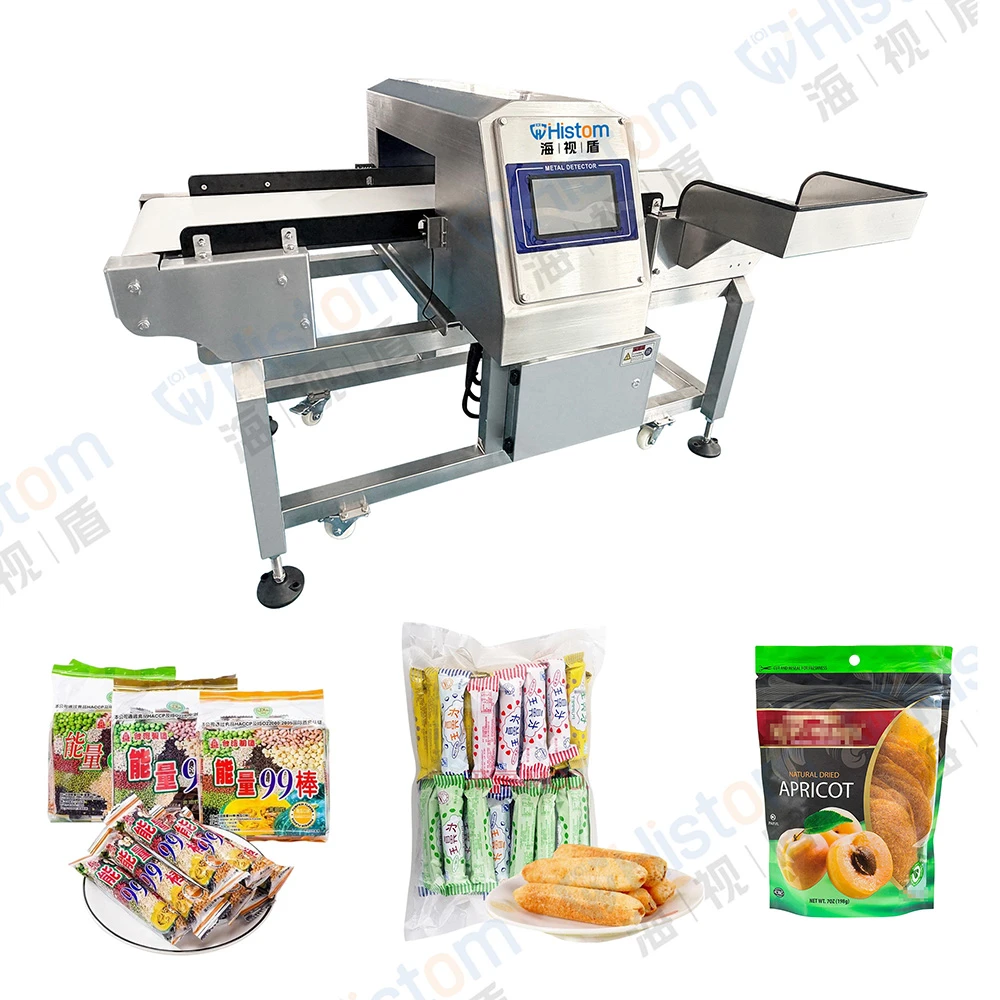

HISTOM’s food metal detector is designed to detect metal contaminants in packaged food products, helping food manufacturers improve product safety and quality control. This metal detector for packaged food can be integrated into suitable packaging lines to inspect finished products before shipment.
As a reliable food metal detection system, it can be configured with suitable conveyor specifications and automatic reject options according to your product characteristics and production requirements. Contact HISTOM to discuss your application and find the right metal detection solution for your food production line.
PRODUCT FEATURES
Automatic Product Learning
Digital Signal Processing
Adjustable Detection Sensitivity

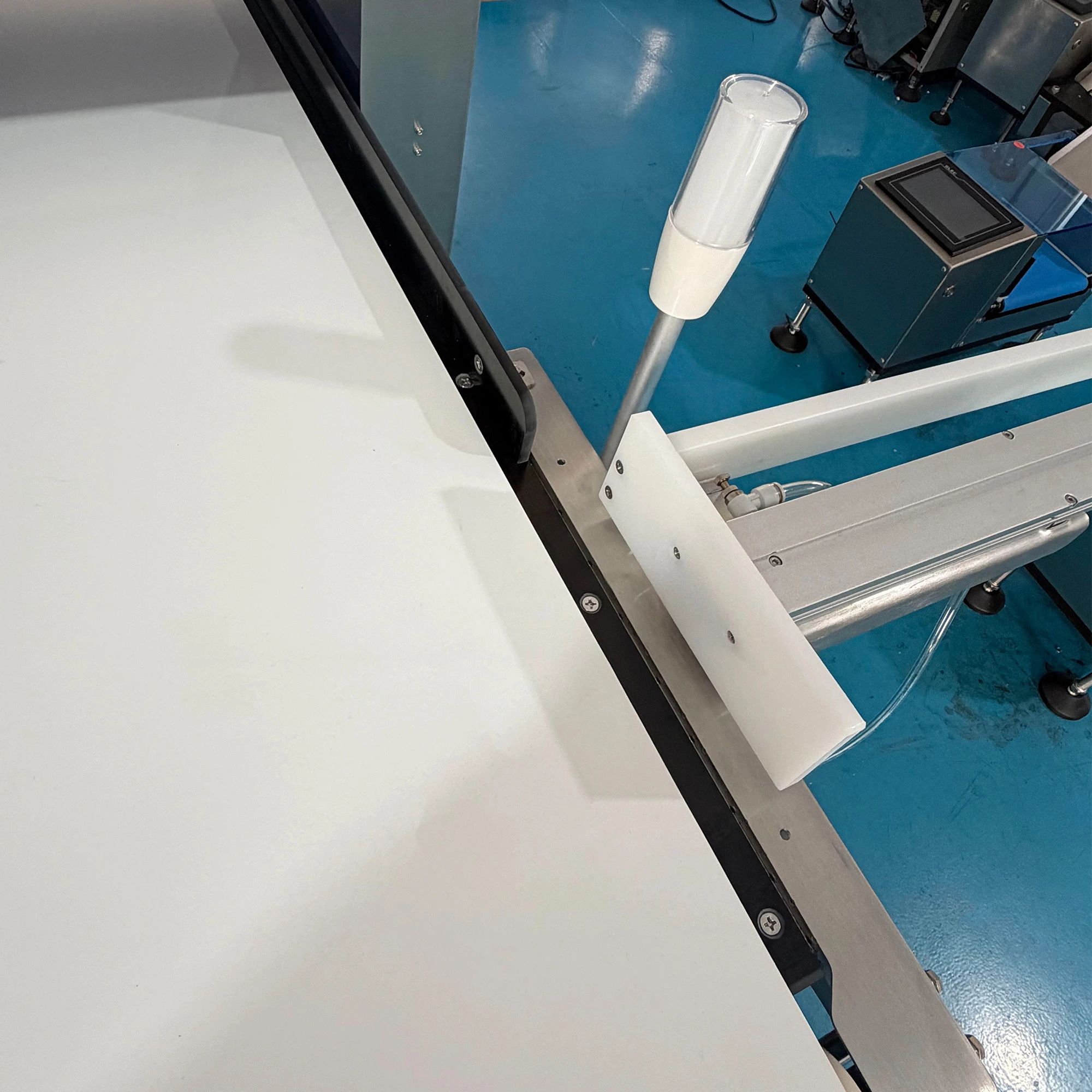

Production Line Integration

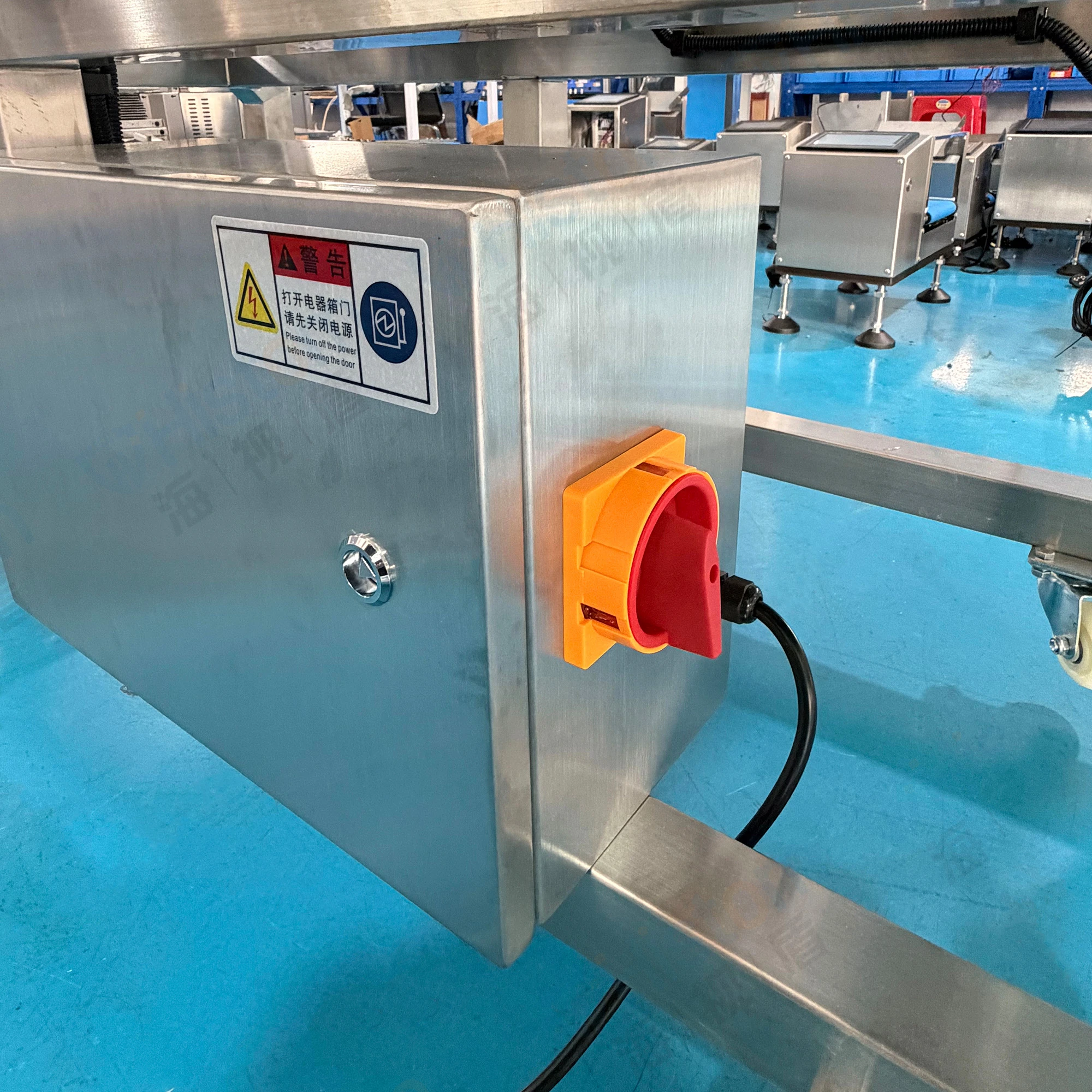

Durable 304 Stainless Steel Frame
Food-Grade PU Conveyor Belt
Resin-Sealed Detector Probe
Easy Cleaning and Maintenance
How Does a Food Metal Detector Work?

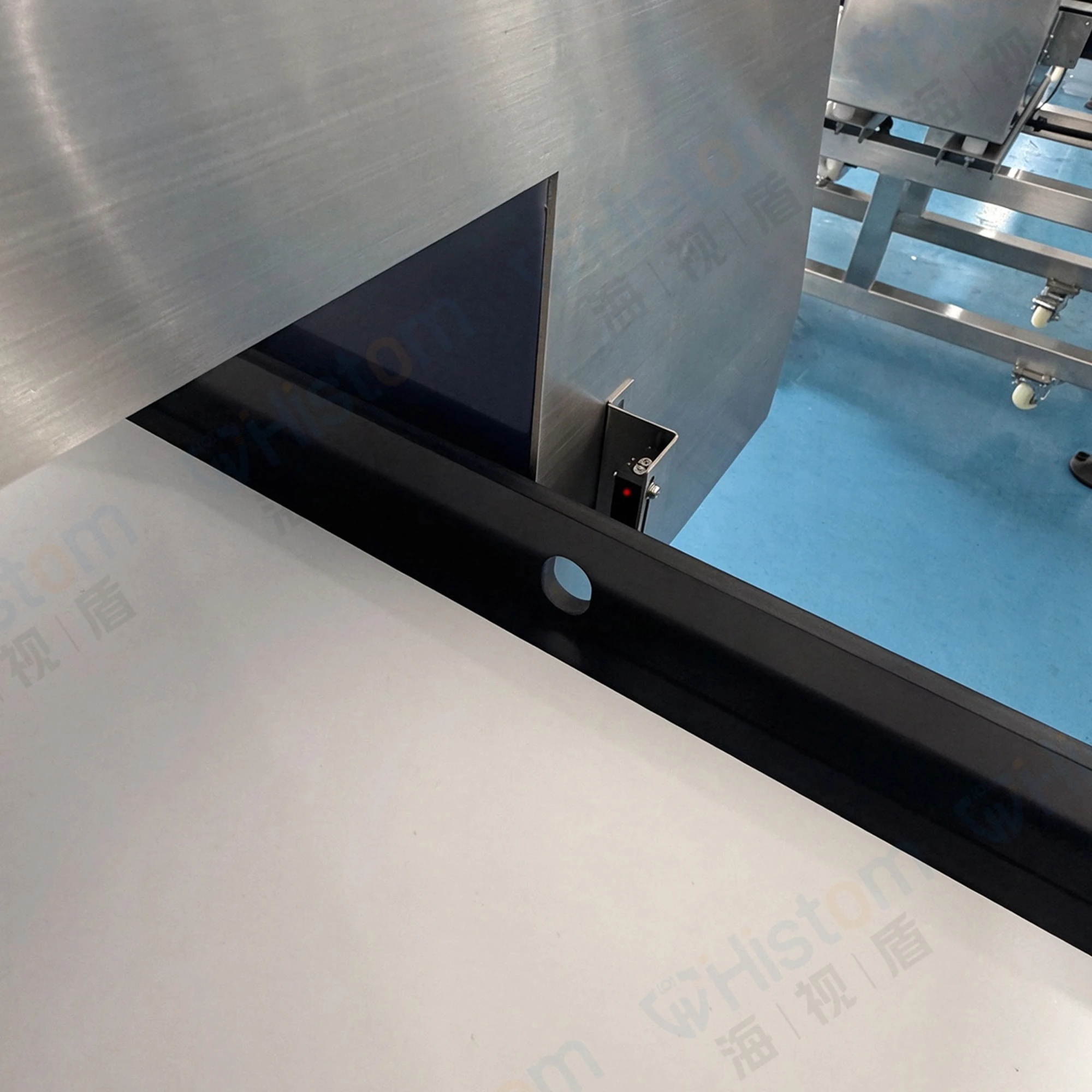

HISTOM’s food metal detector uses an electromagnetic detection system to identify metal contaminants in packaged food products. As products pass through the detection tunnel on the conveyor belt, metal particles disturb the electromagnetic field and generate a detectable signal. The digital signal processing system analyzes the signal to identify potential metal contamination. When metal is detected, the machine triggers an alarm or activates the configured rejection system, if equipped, to help prevent contaminated products from reaching customers.
PRODUCT SPECIFICATIONS
|
Model |
M‑2210 |
|
|
Aisle Width |
220mm |
|
|
Aisle Height |
100mm |
|
| Conveyor belt speed |
30m/min |
|
|
Sensitivity |
FE |
1.2mm |
|
NFE |
2mm |
|
|
SUS304 |
2.5mm |
|
|
Operation |
Button |
|
| Conveyor belt material | Food-grade PU belt | |
|
Rejector |
Air Blast/ Pusher/ Swing Arm/ Flip Down/ Diversion Rejector |
|
|
Power Supply |
AC220V±10% 50Hz(60Hz) |
|
|
Operation Direction |
Facing The Machine, Left In And Right Out |
|
|
Work Environment |
Temperature:0℃~40℃,Humidity:30%~95% |
|
| Protection Rating | IP65 | |
|
Main Materials |
SUS304 Stainless Steel |
|
