SCOPE OF APPLICATION
Detect whether the product contains metal impurities,and the rejection device will automatically reject substandard products.

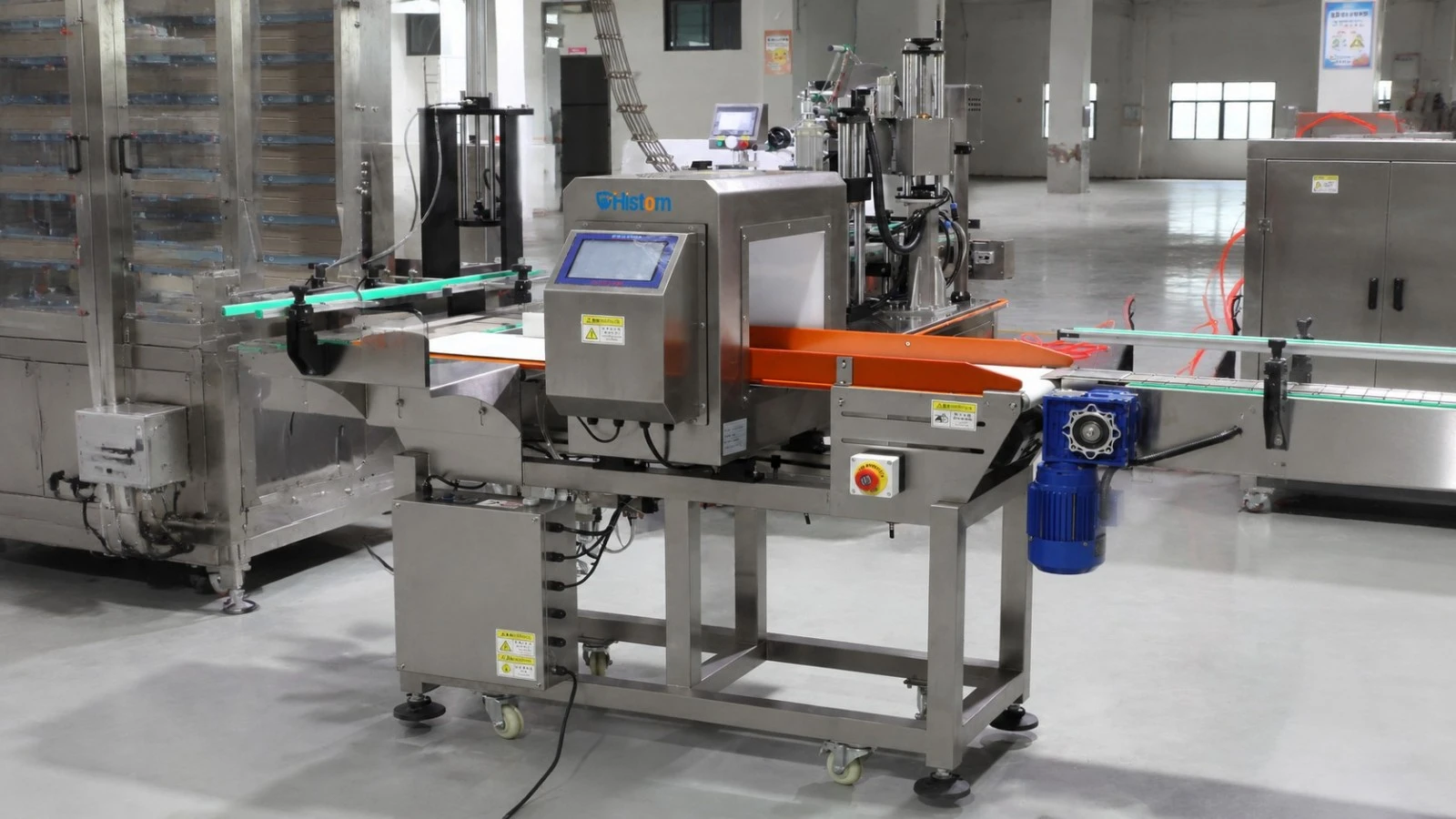

This equipment is used at the end of various automated production lines.Accurate detection of different food types and different metal impurities can be achieved.
SAMPLE INSPECTION EXAMPLE

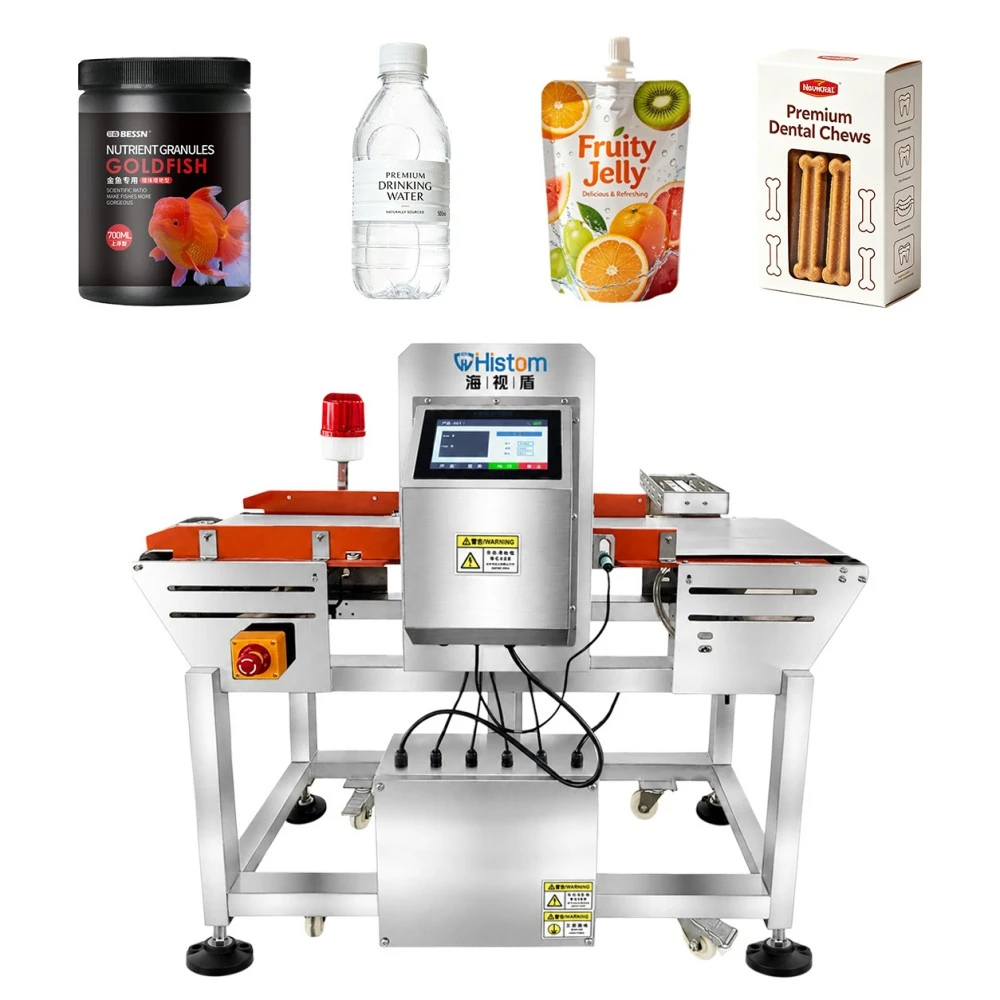

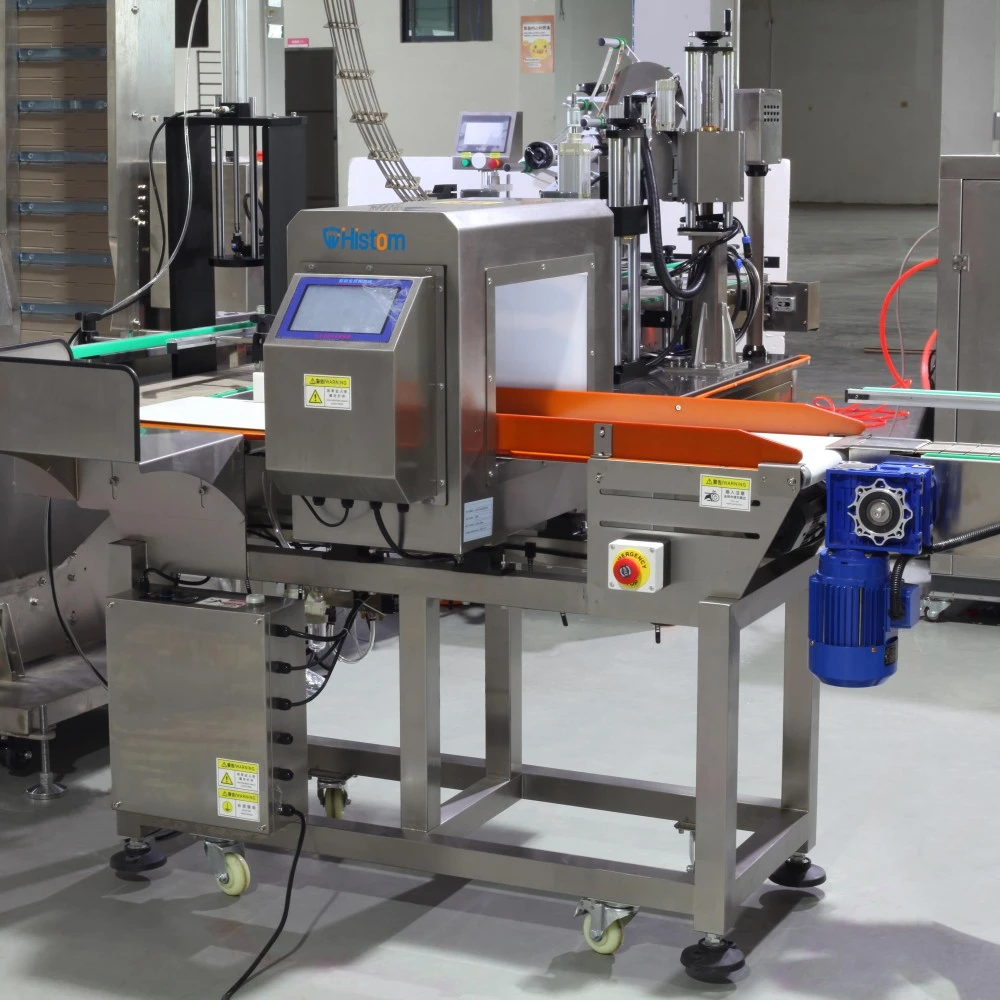

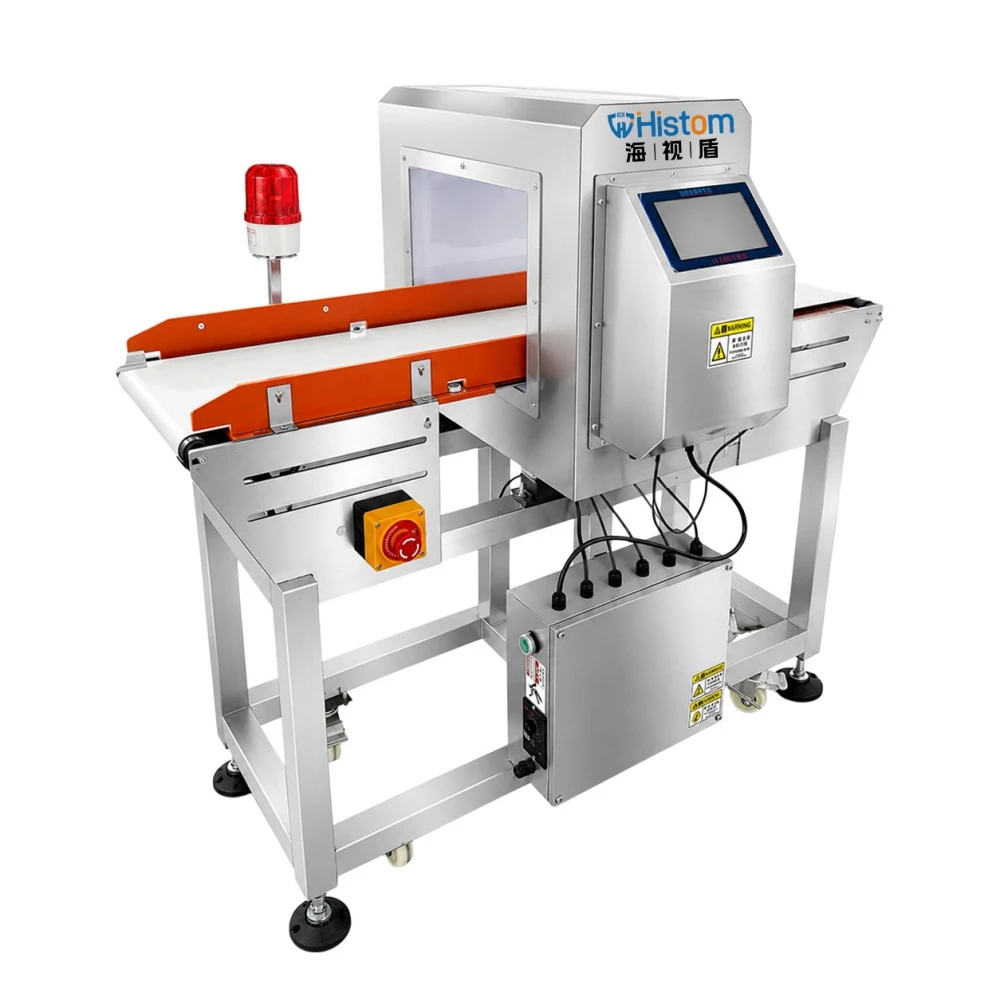

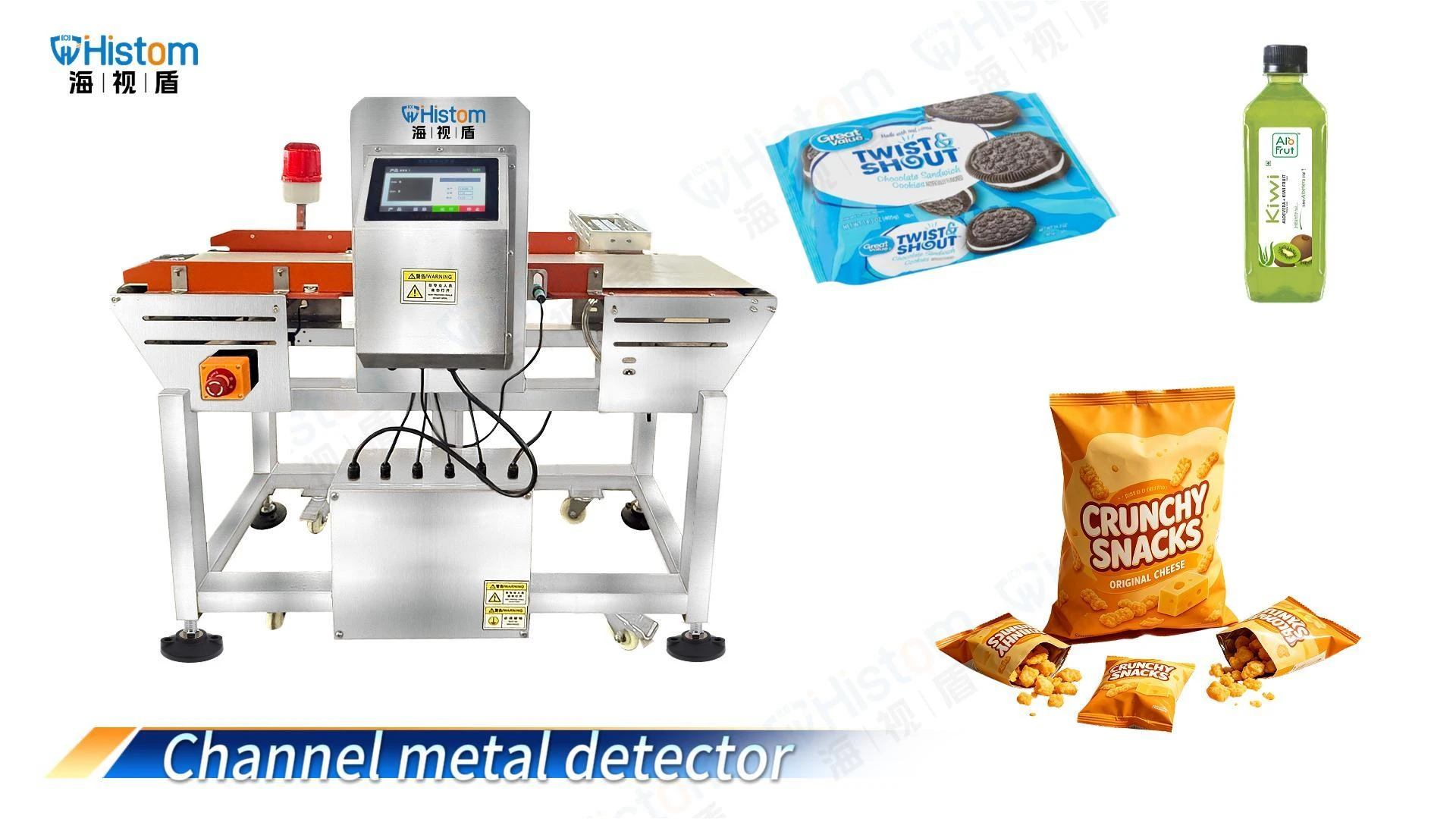

PRODUCT DESCRIPTION
Equipment used to detect whether items contain metal contaminants, widely applied in industries such as food processing, pharmaceuticals, chemicals, and packaging. When materials (e.g., food, medicine, packaging) pass through the detection channel, the presence of metal contaminants will interact with the electromagnetic detector, generating an electromagnetic field. The control system then determines the existence of metal objects based on the received threshold and triggers an alarm mechanism. This ensures product quality and safety, preventing metal contaminants from entering the market.
PRODUCT FEATURES
Accuracy: Ferrous 1.5mm, Non-ferrous 1.5mm, Stainless Steel 2.0mm
Electromagnetic induction will not cause any physical damage to the items being inspected.
The electromagnetic detector is integrally potted, offering stable performance and strong anti-interference capability.

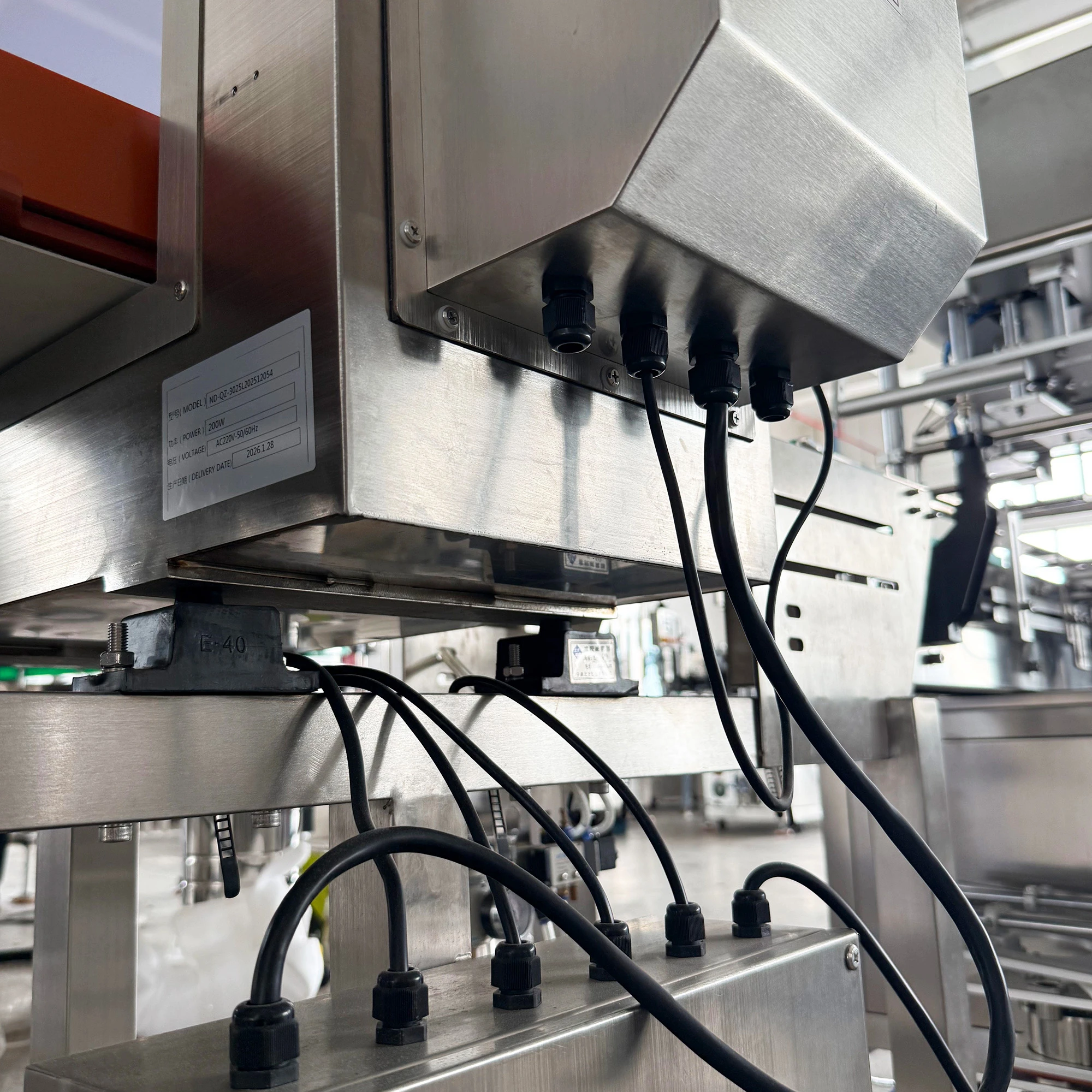

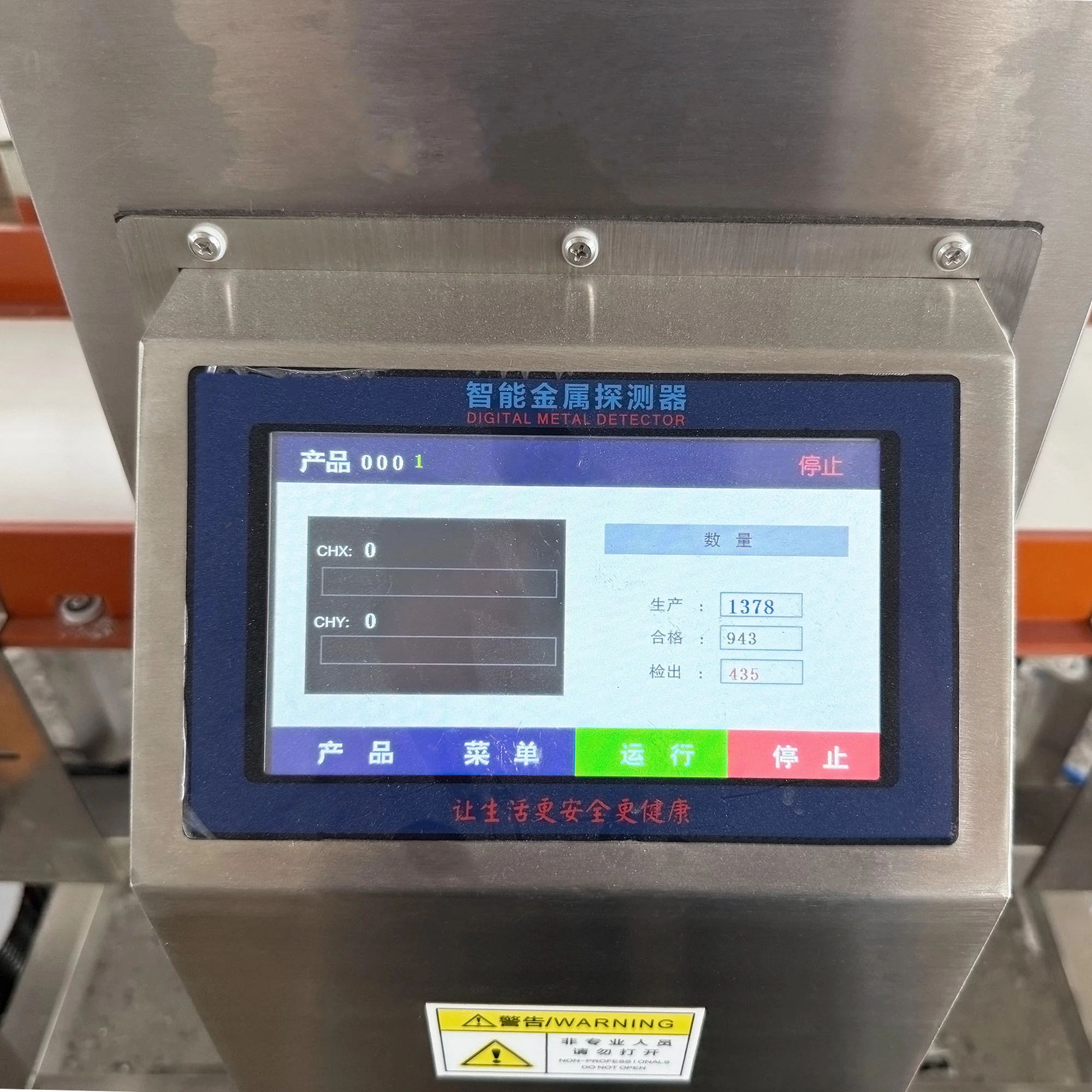

Intelligent system with automatic sensitivity learning and memory function, capable of storing data for up to 100 products.
Can be equipped with a rejection device according to user requirements.
WORKING PRINCIPLE

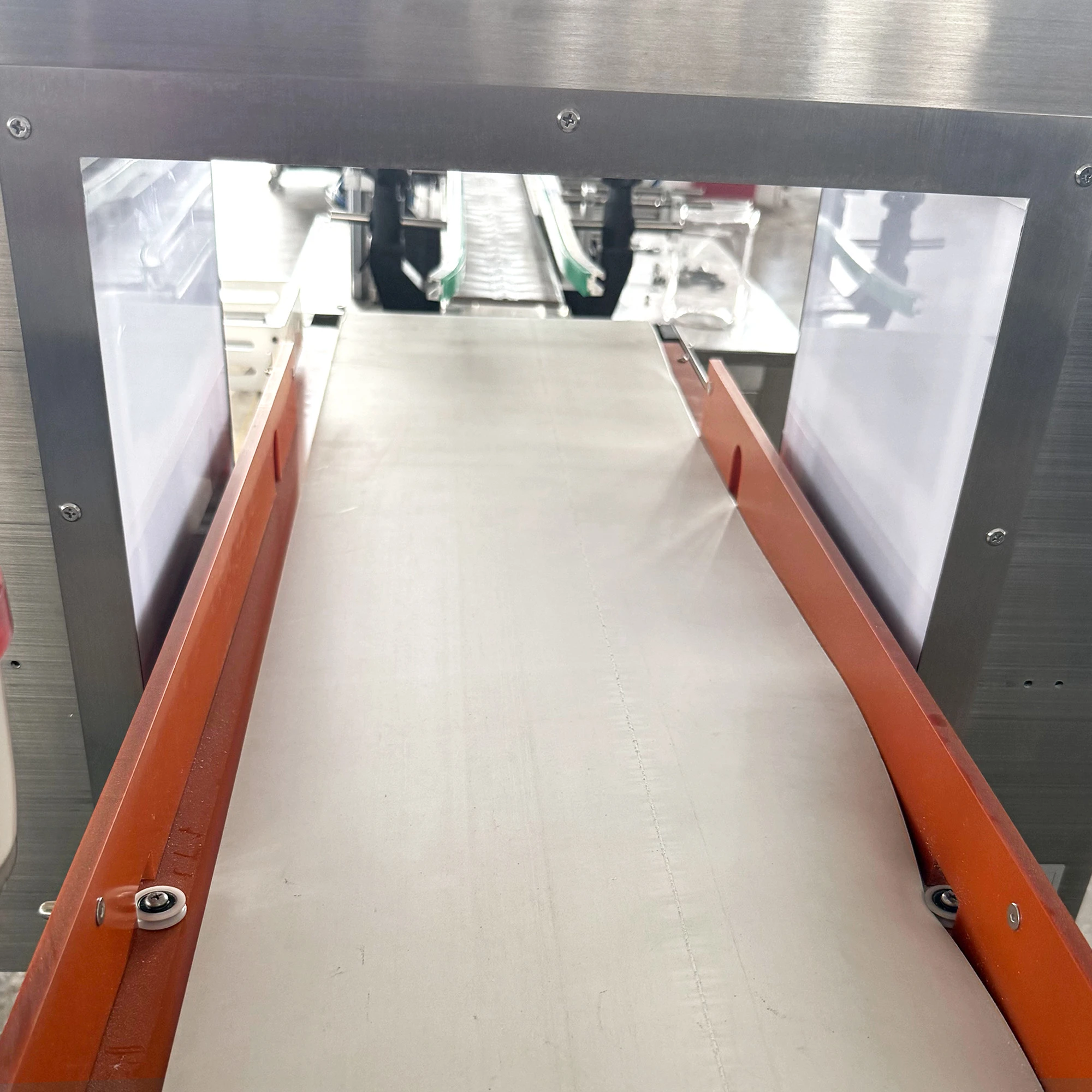

Operating on the principle of electromagnetic induction, a metal detector utilizes an internal transmitting coil to generate a high-frequency alternating magnetic field, while two oppositely wound receiving coils on either side maintain a real-time electromagnetic balance (zero signal); when a product contaminated with metal passes through the inspection tunnel, the high magnetic permeability of ferrous metals or the eddy current effect induced within non-ferrous metals instantly disrupts this equilibrium, causing the receiving coils to capture a faint voltage differential signal that is sent to a DSP processor, which triggers the downstream rejection mechanism (such as an air jet or pusher) within milliseconds to precisely intercept and eliminate the defective product.
PRODUCT SPECIFICATIONS
|
Model |
HMD‑30 |
HMD‑40 |
HMD‑50 |
HMD‑60 |
|
|
Aisle Width |
300mm |
400mm |
500mm |
600mm |
|
|
Aisle Height |
100/150mm |
100/150mm |
150/200mm |
200mm |
|
|
Conveying Speed |
30m/min |
||||
|
Sensitivity |
FE |
0.8/1.0mm |
0.8/1.0mm |
1.0/1.5mm |
1.5mm |
|
NFE |
1.0/1.2mm |
1.0/1.2mm |
1.2/1.5mm |
2.0mm |
|
|
SUS304 |
1.5mm |
1.5mm |
1.5/2.0mm |
2.5mm |
|
|
Operation |
Button |
||||
|
Rejector |
Air Blast/ Pusher/ Swing Arm/ Flip Down/ Diversion Rejector |
||||
|
Power Supply |
AC220V±10% 50Hz(60Hz) |
||||
|
Product Preset |
100 |
||||
|
Operation Direction |
Facing The Machine, Left In And Right Out |
||||
|
External Air Source |
0.6‑1Mpa |
||||
|
Air Pressure Interface |
Φ8mm |
||||
|
Work Environment |
Temperature：0℃～40℃,Humidity:30%～95% |
||||
|
Main Materials |
SUS304 Stainless Steel |
||||

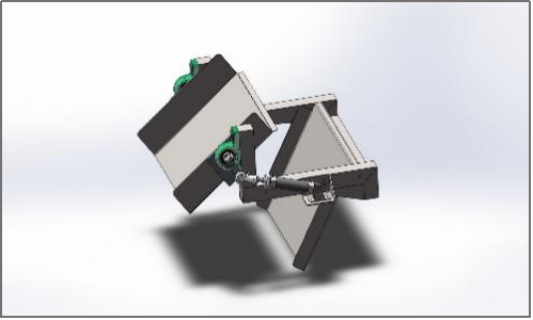

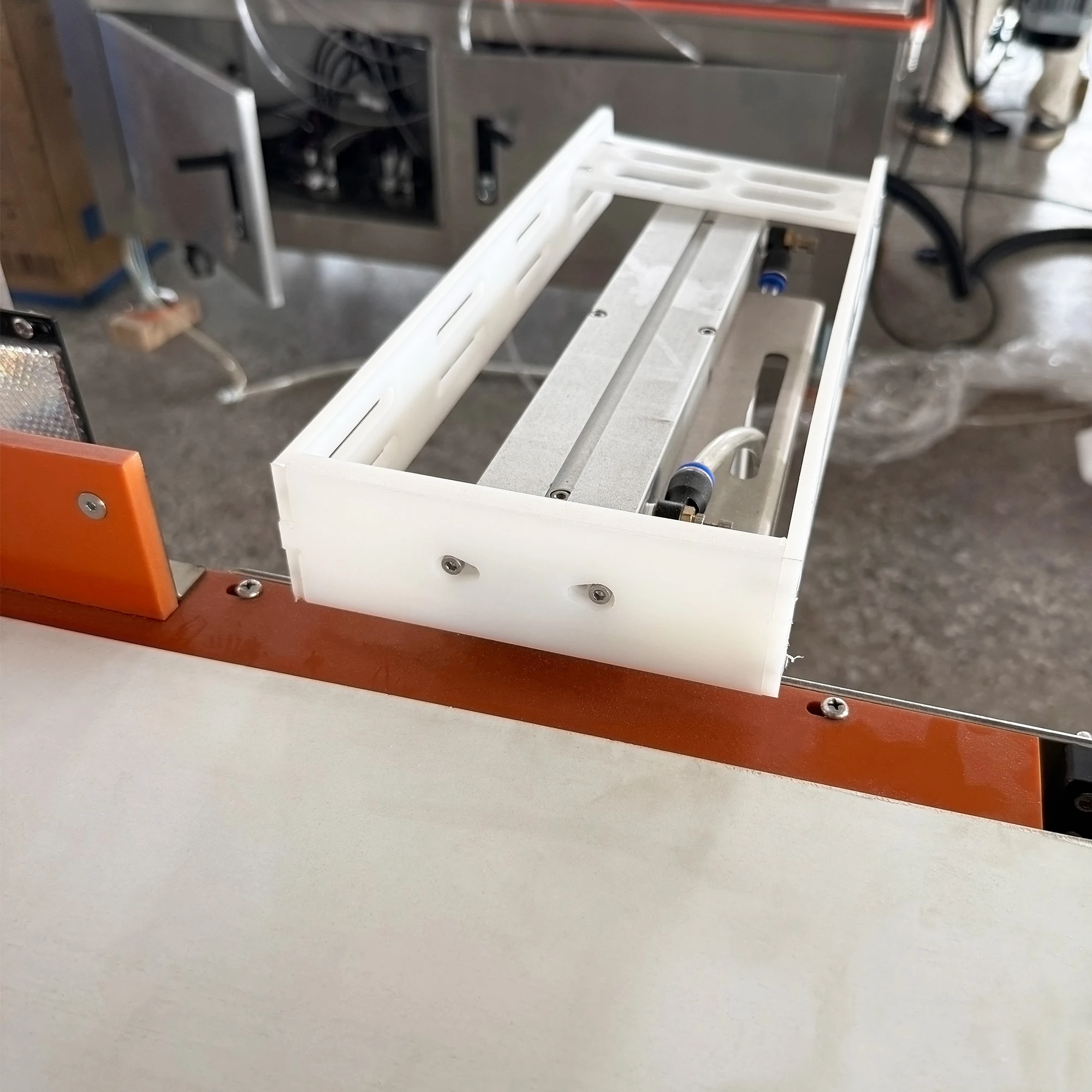

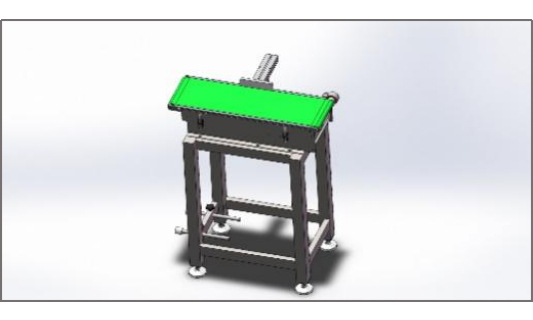

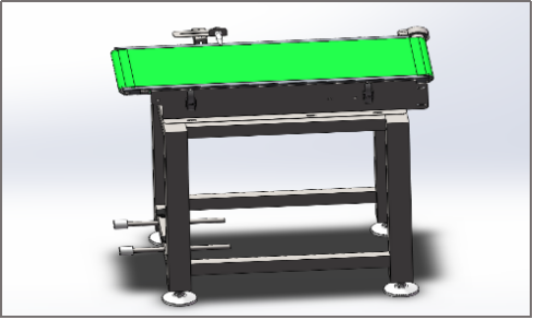

Rejection System (Optional)
