SCOPE OF APPLICATION
1.The dynamic checkweigher verifies the weight of each product against a preset weight range and automatically rejects underweight, overweight or incomplete products.
2.It can also identify missing items, such as missing bottles, boxes, bags, pieces or accessories, based on weight differences. The system is suitable for dynamic, in-line weighing across a wide range of automated production lines, helping ensure consistent product quantity and weight.
SAMPLE INSPECTION EXAMPLE
PRODUCT DESCRIPTION

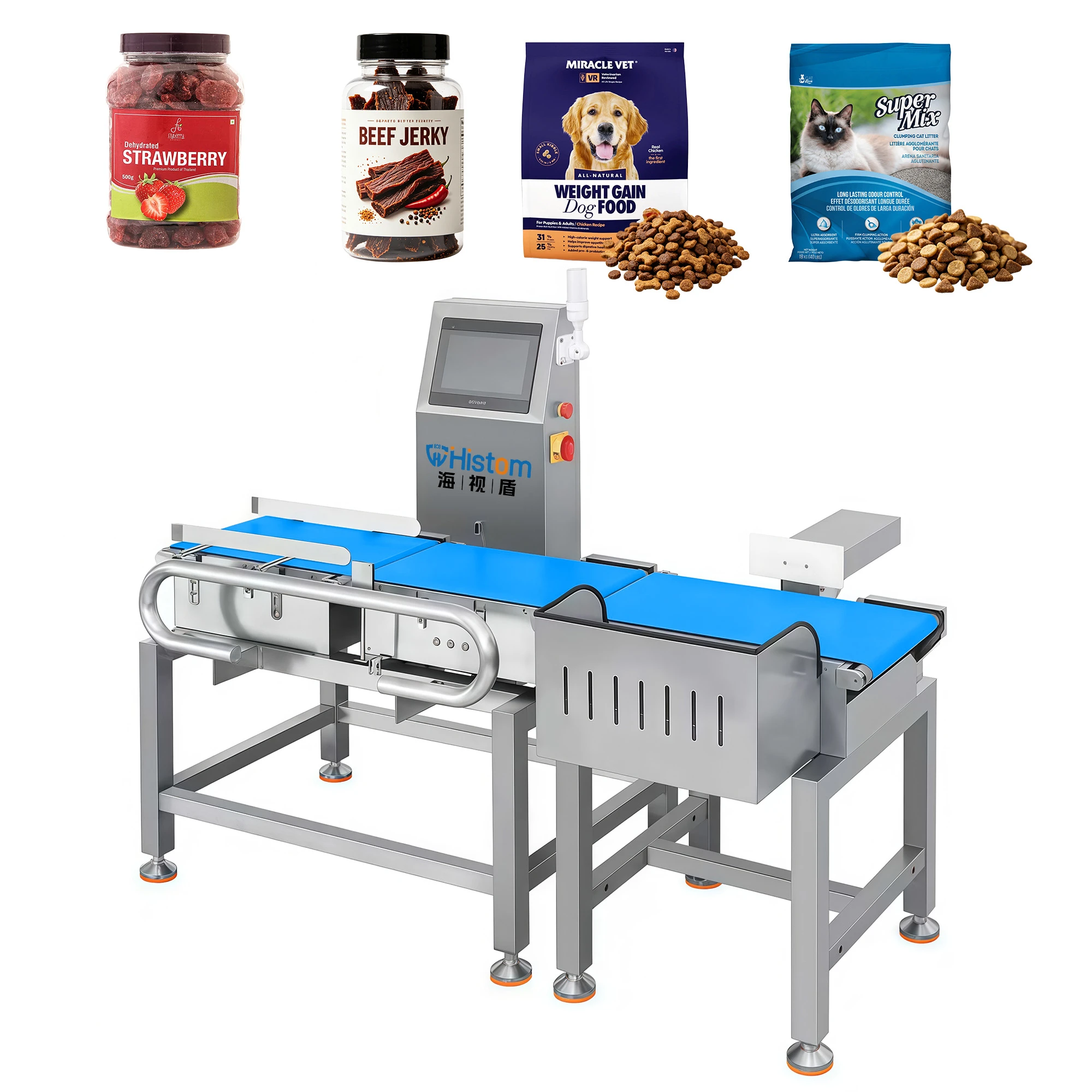

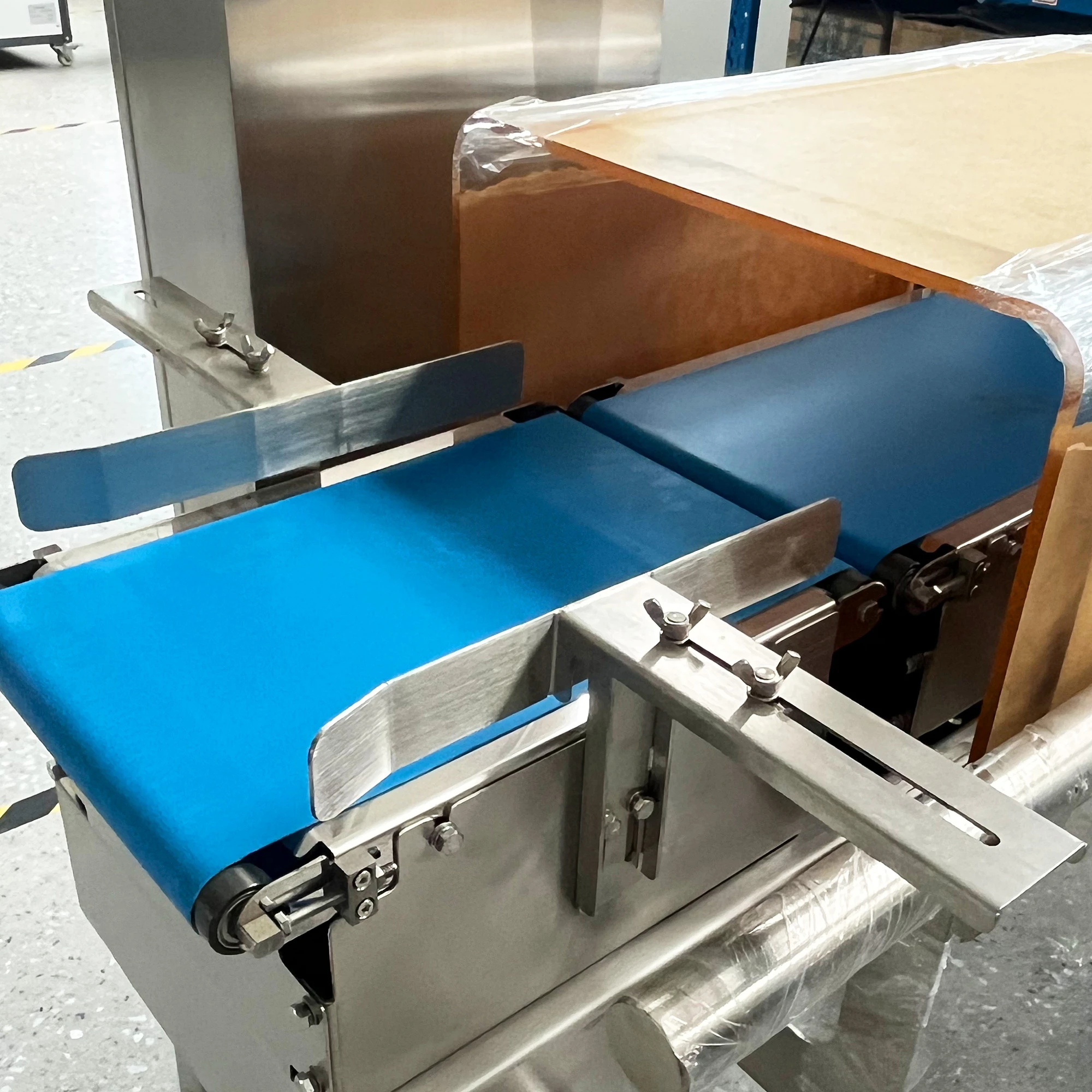

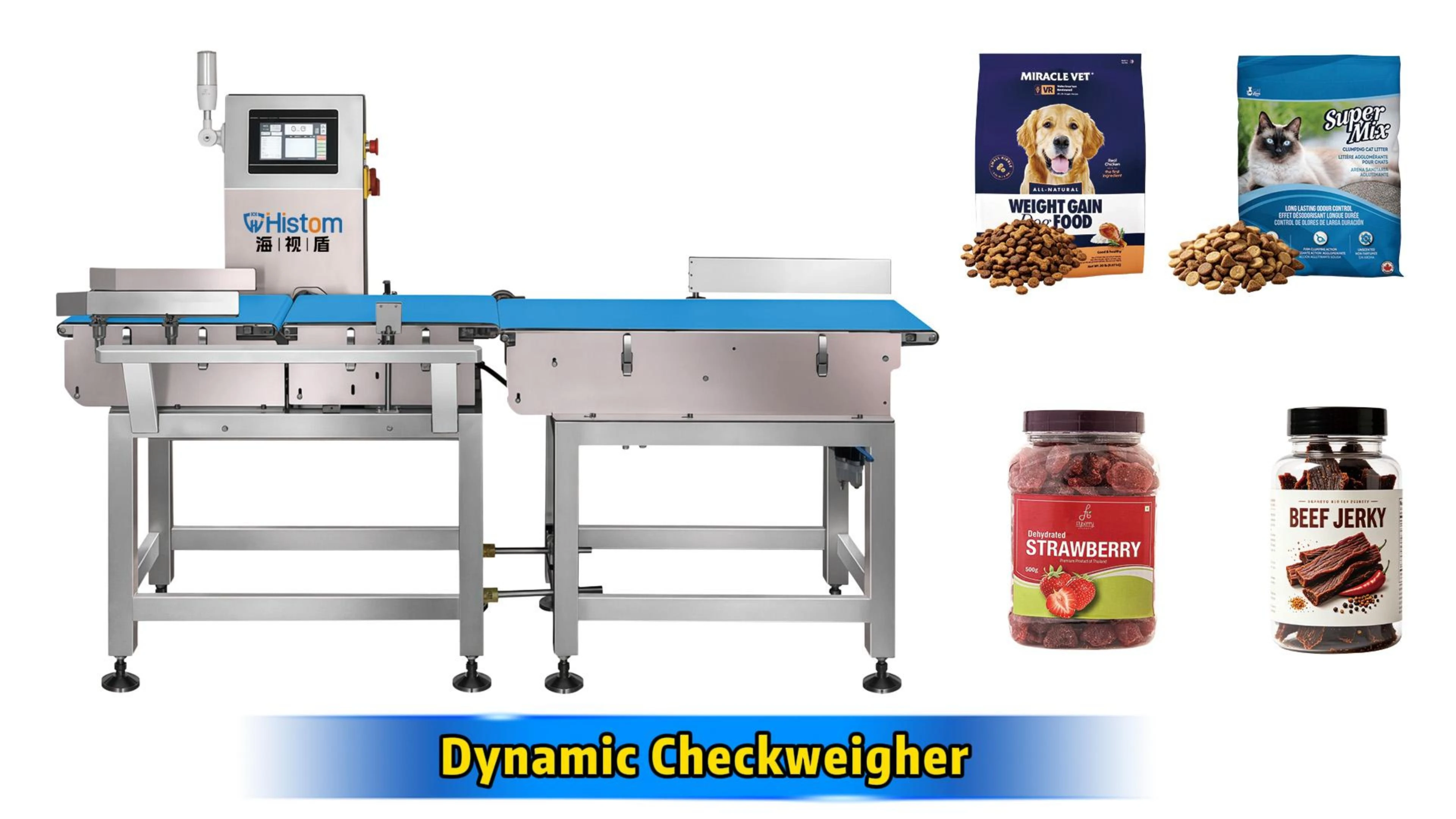

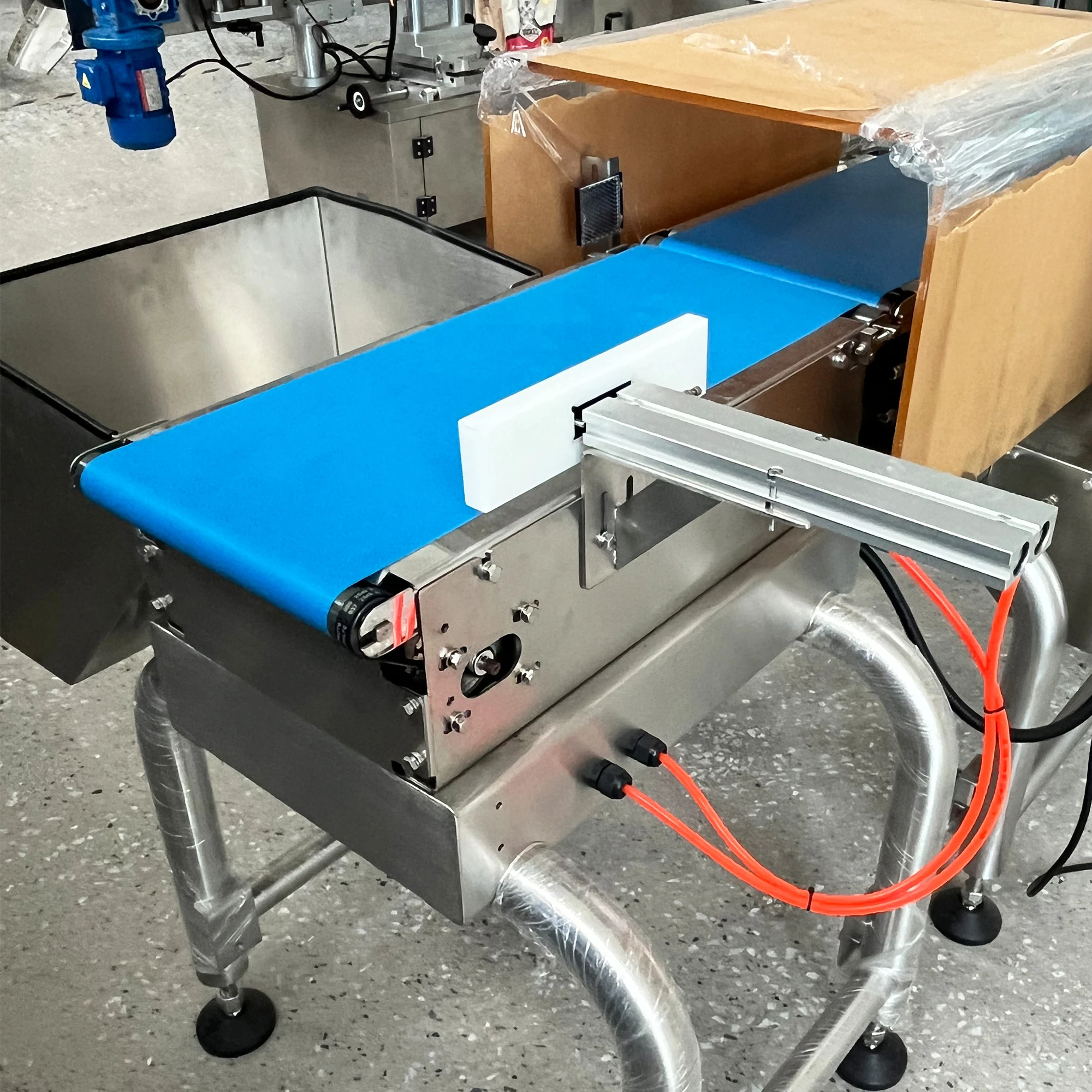

The dynamic checkweigher provides accurate, automated weight inspection for bagged, boxed, bottled and other packaged products. It detects underweight, overweight and incomplete products in real time and automatically rejects non-conforming items, helping ensure consistent product weight and quality.
PRODUCT FEATURES
Wide Product Compatibility：Suitable for a wide range of products and packaging formats, including bagged, boxed and bottled goods.
Fast & Reliable Detection：High-performance sensors enable rapid sampling and automatically trigger alarms or reject underweight, overweight and non-conforming products.
High Weighing Precision：Stable weighing accuracy of up to ±0.1 g for reliable weight control.
Durable 304 Stainless Steel：The main body is constructed from 304 stainless steel, providing excellent durability and suitability for demanding production environments.
Production Data Storage：A USB drive can store more than one year of production statistics, making it easy to track and review production data.
WORKING PRINCIPLE

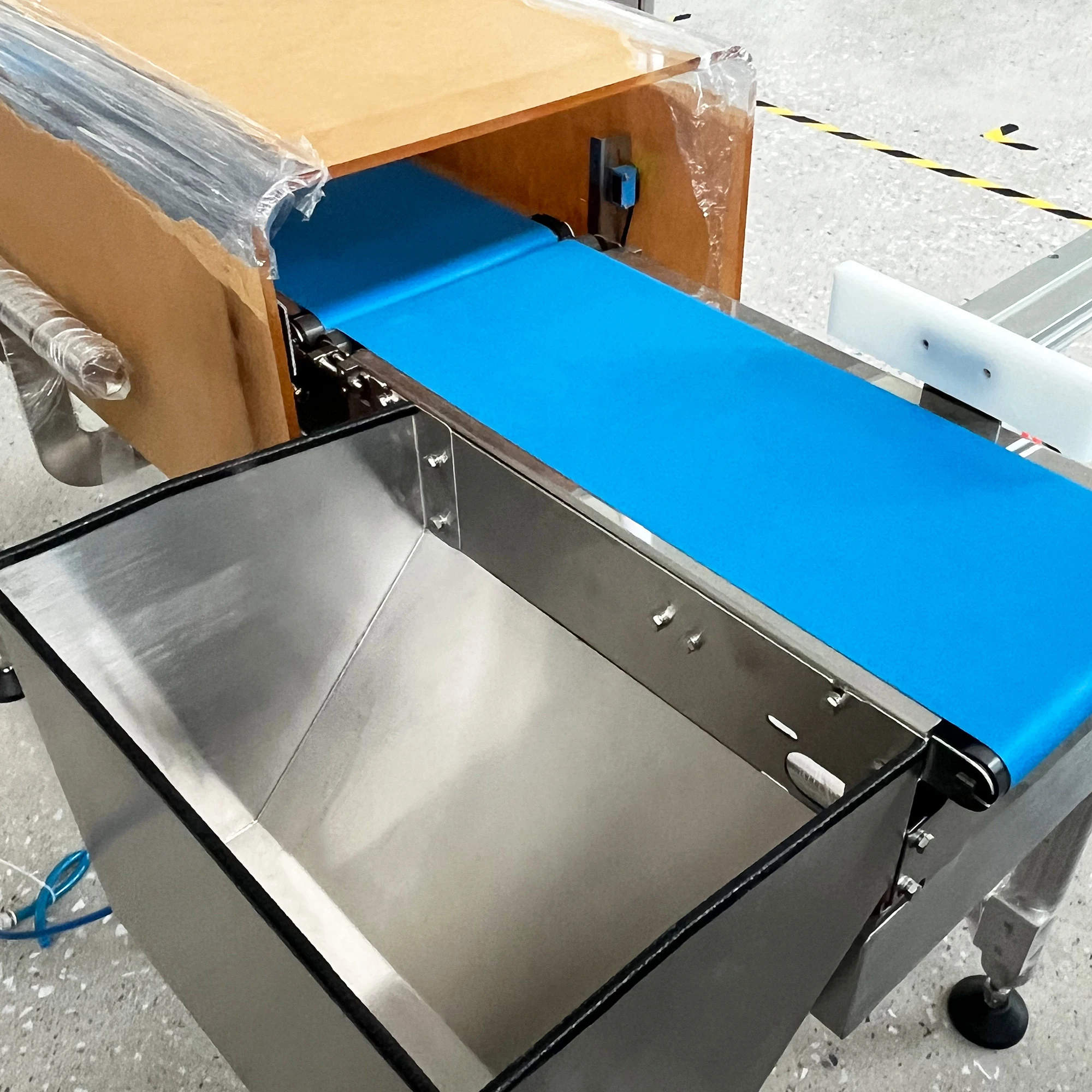

Dynamic checkweighers utilize high-precision sensors mounted on a conveyor belt to perform real-time, dynamic weighing of products, automatically rejecting non-conforming items. This ensures that compliant products flow smoothly into subsequent production stages, while simultaneously enhancing production efficiency and product quality control.
PRODUCT SPECIFICATIONS
|
Model |
HCW-150 |
HCW-200 |
HCW-300 | ||
|
Power Supply |
AC220V±10% 50Hz（60Hz） |
||||
|
Weighing Range |
≤1000g |
≤3000g |
≤5000g |
||
|
Weighing Accuracy |
±0.1g~±1g | ±0.1g~±1g | ±0.3g~±1g | ||
|
Product Size |
L300mm * W150mm | L400mm * W200mm | L500mm * W300mm | ||
|
Platform Size |
L300mm* W150mm | L400mm * W200mm | L500mm * W300mm | ||
|
Rejector |
Air Blast/ Pusher/ Swing Arm/ Flip Down/ Diversion Rejector | ||||
| Control Module |
High-Speed A/D Sampling Module |
||||
|
Product Preset |
100 types | ||||
|
Operation Direction |
Facing The Machine, Left In And Right Out |
||||
|
Work Environment |
Temperature：0℃～40℃,Humidity:30%～95% |
||||
|
Main Materials |
SUS304 Stainless Steel |
||||

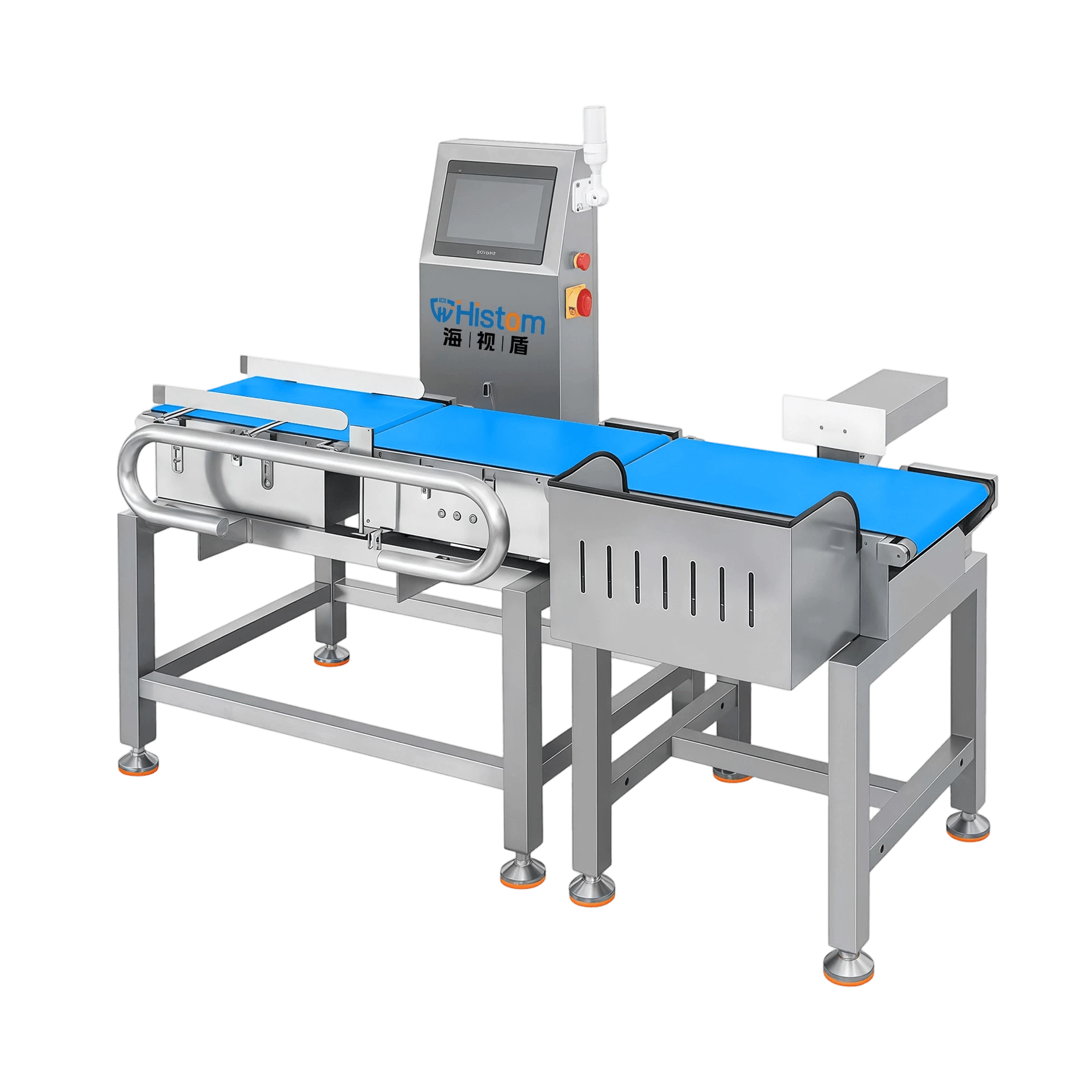

Automatic Checkweigher for Pre-Packaged Products
