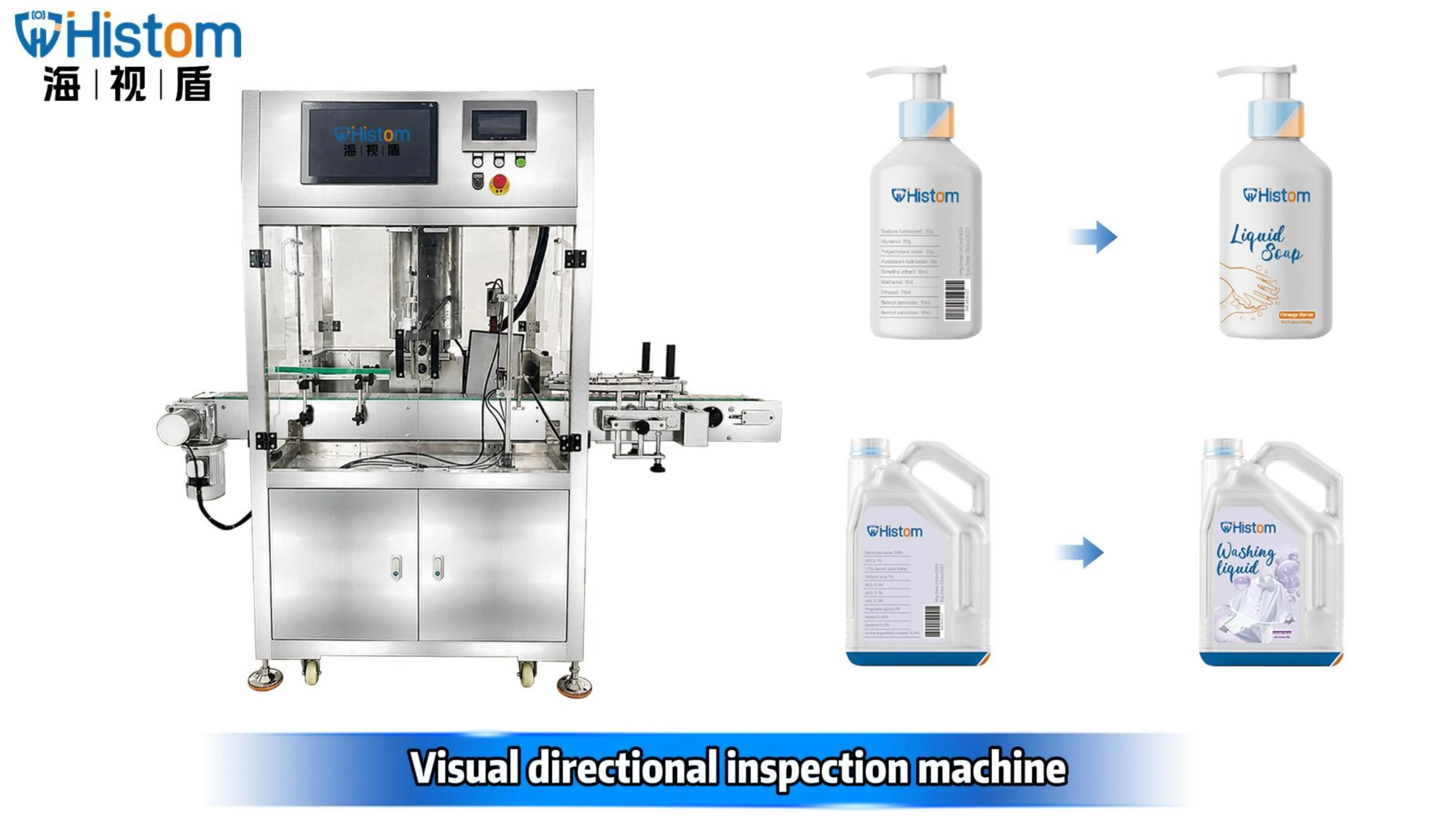

Vision directional inspection machine

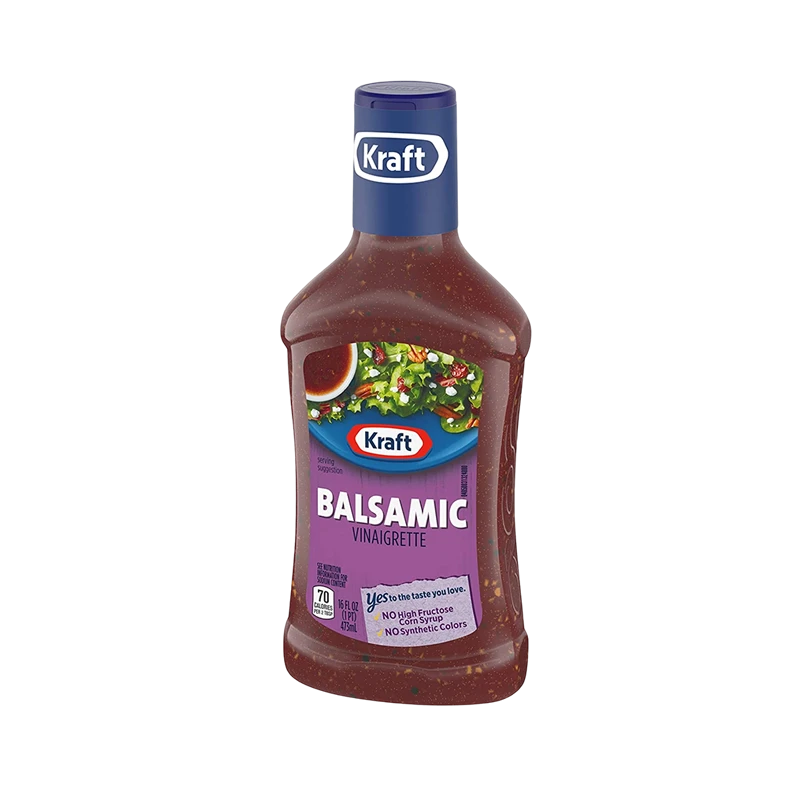

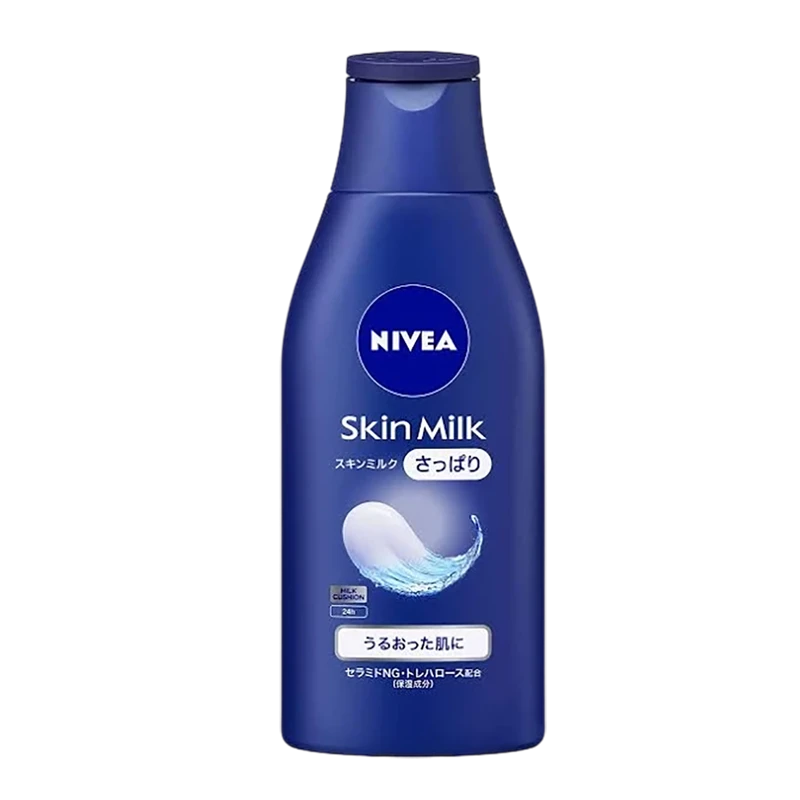

1.The personal care and food & condiment industries feature an immense variety of bottle types, yet end markets demand exceptional consistency in product appearance. Our visual bottle-inversion system was designed specifically to meet this challenge; it effortlessly handles complex shapes, ensuring every single bottle enters the market looking absolutely perfect.

2.Suitable for containers made of various materials—such as glass, PET, and ceramic—and in diverse shapes, including round, square, and polygonal. The equipment can be customized based on specific production requirements regarding container shape, material, characteristics, speed, conveying, and rejection.

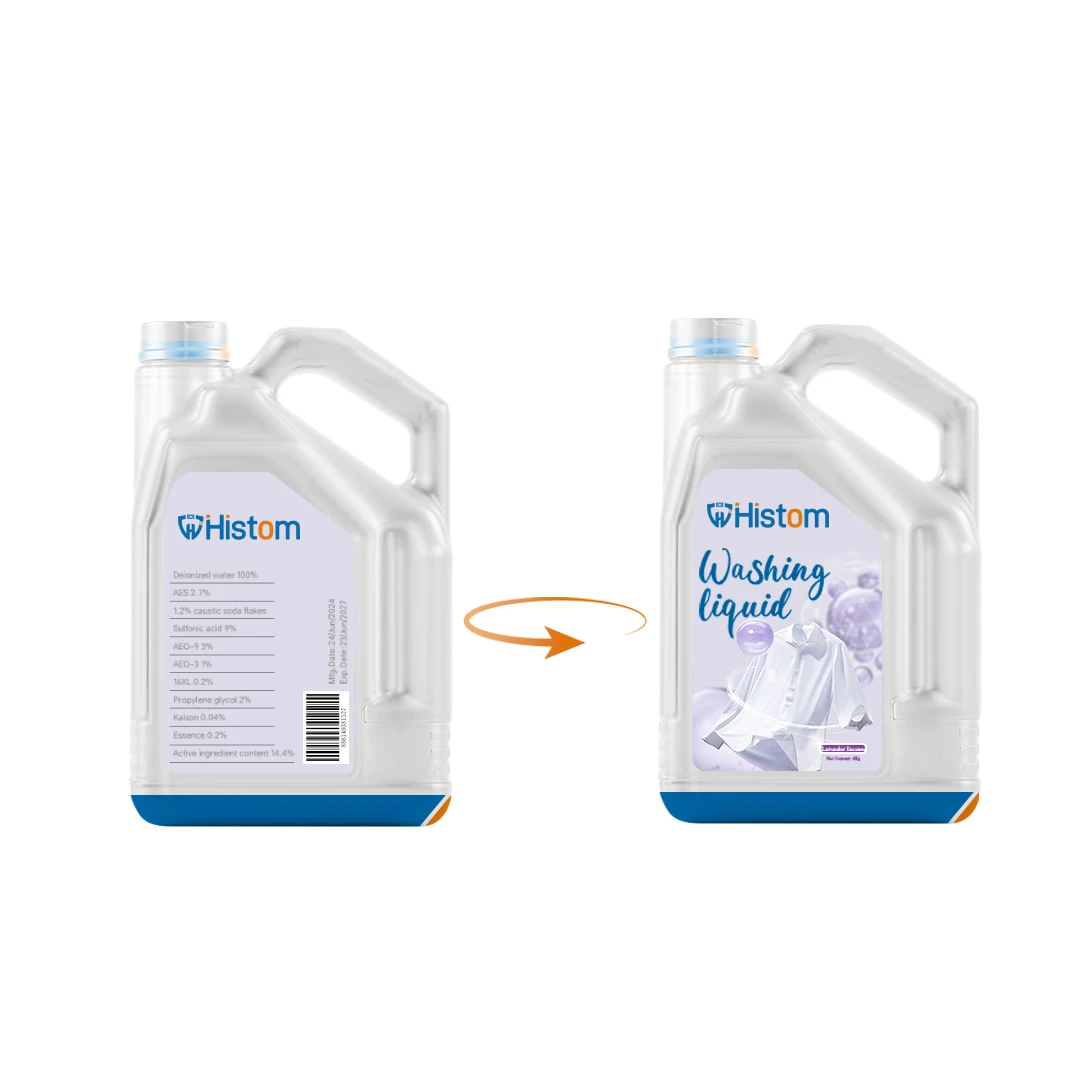

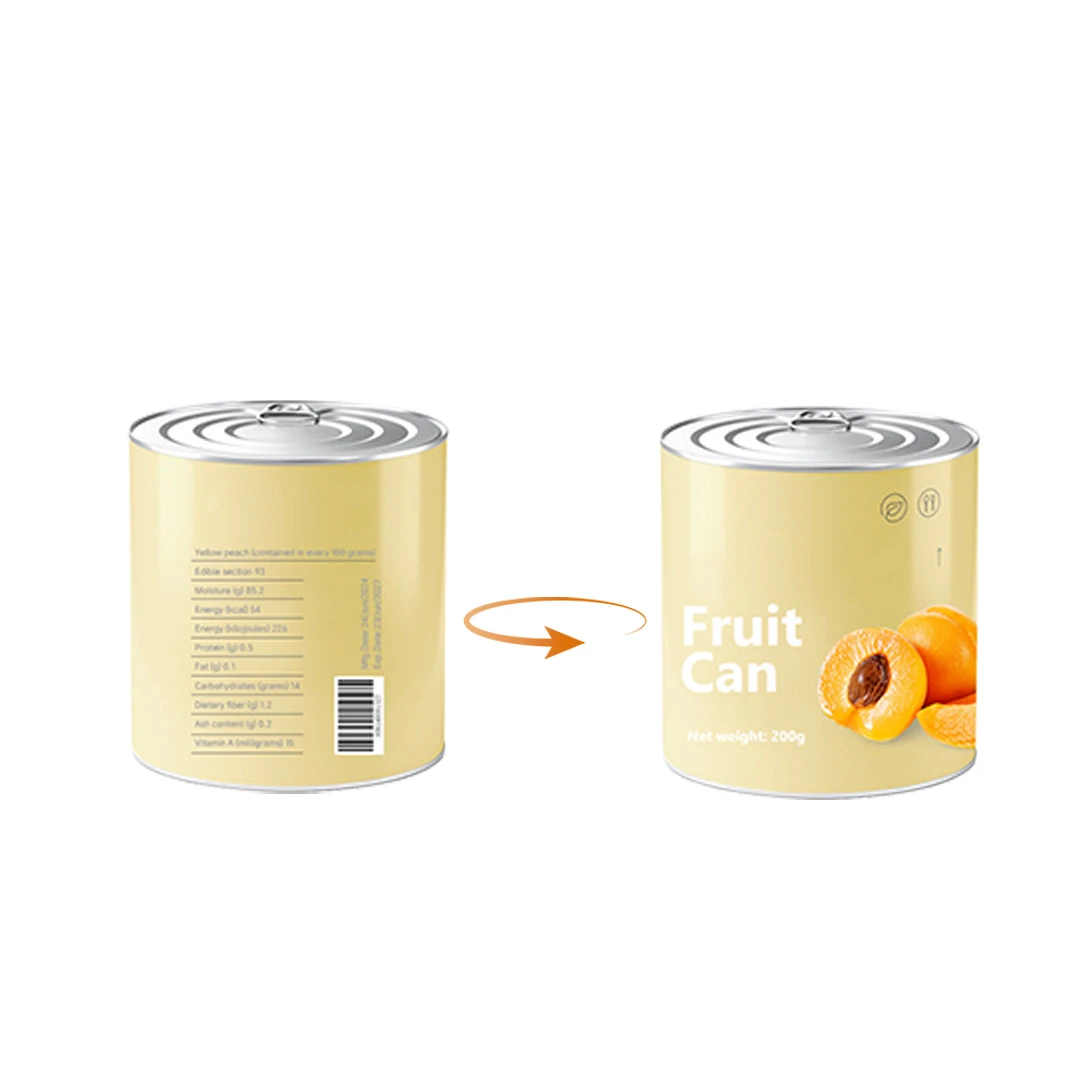

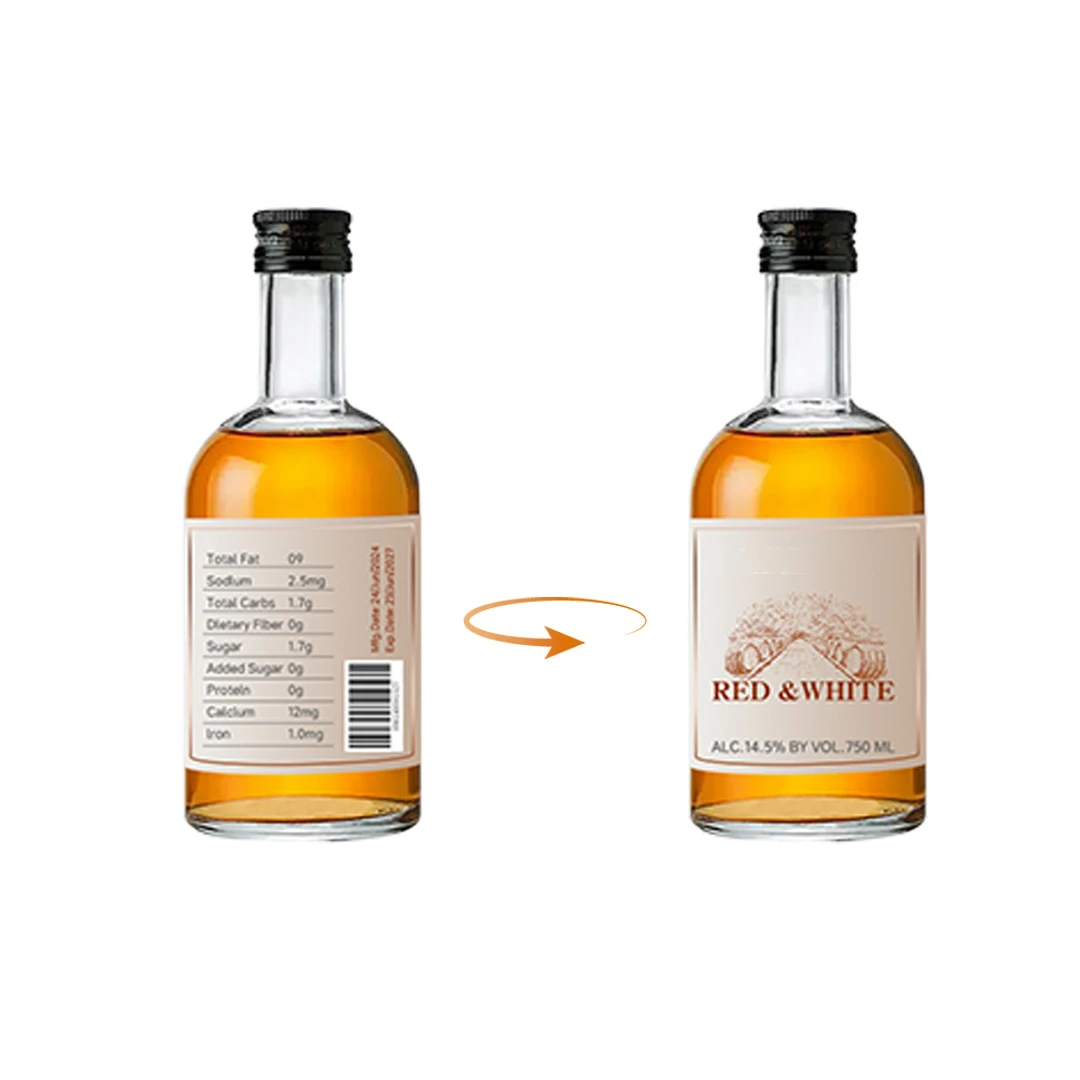

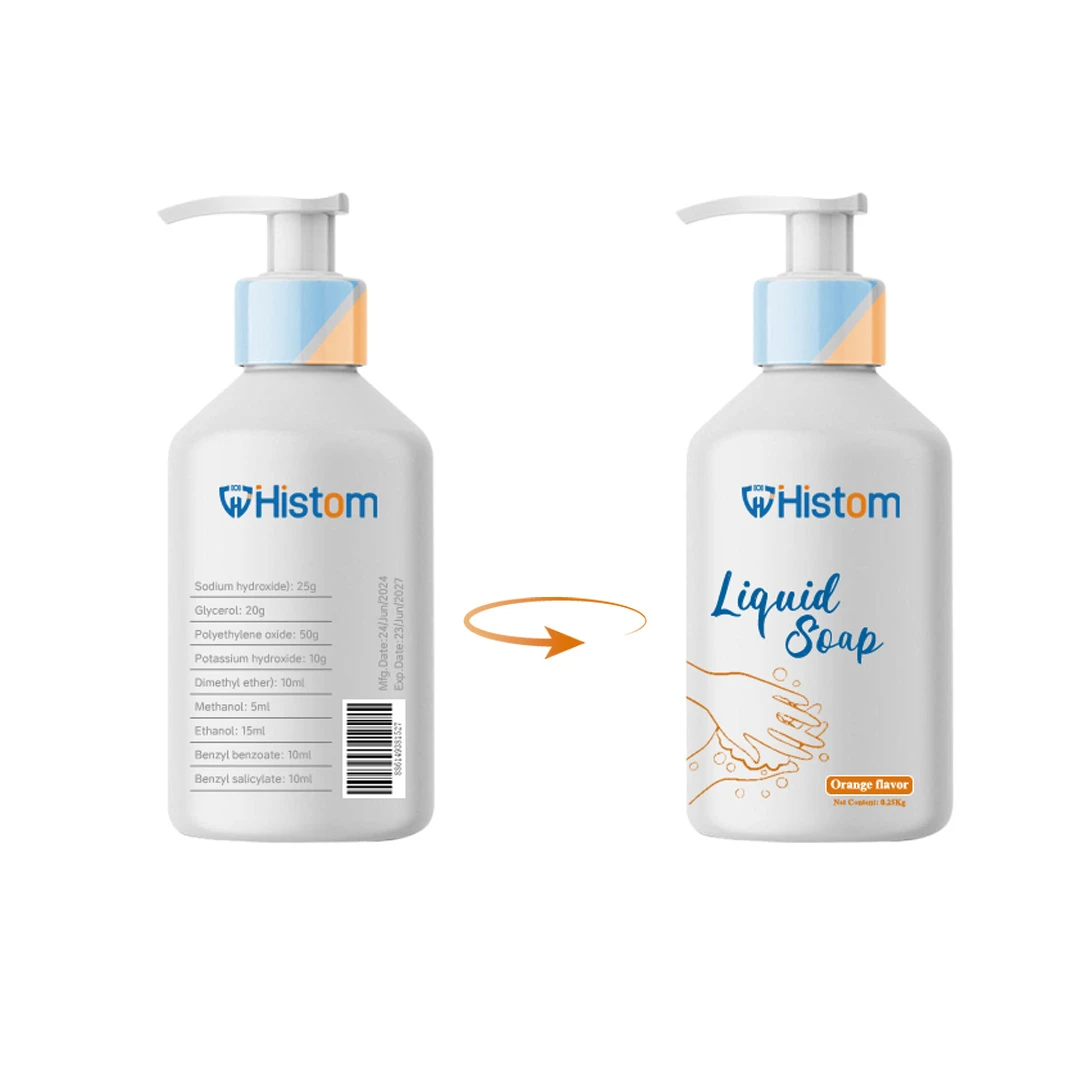

To address the issue of random bottle orientations during transport, a vision system identifies and detects specific bottle features and rotates the bottles to a designated orientation; this ensures uniform alignment on high-speed production lines, thereby facilitating the smooth operation of subsequent processes such as labeling and packaging.

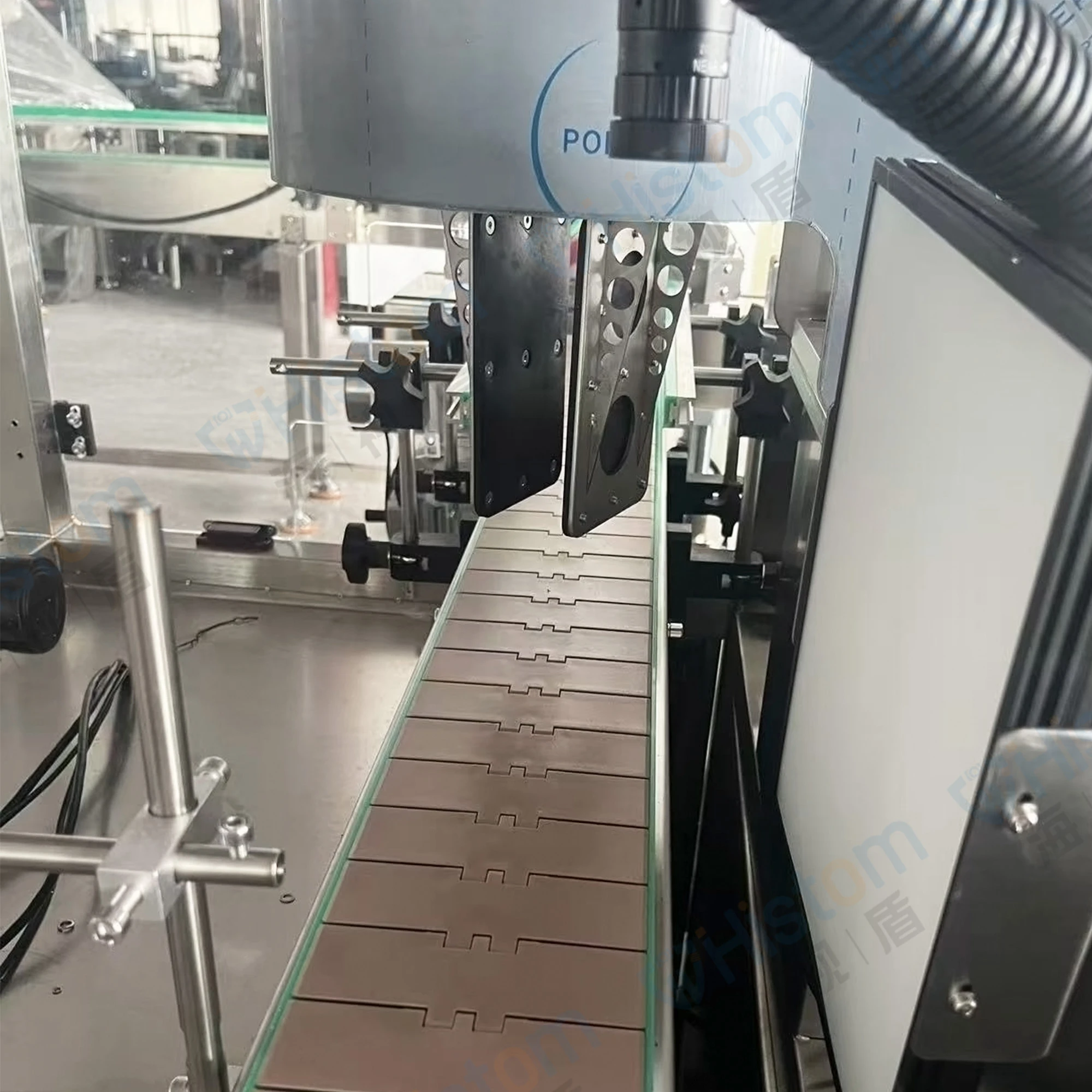

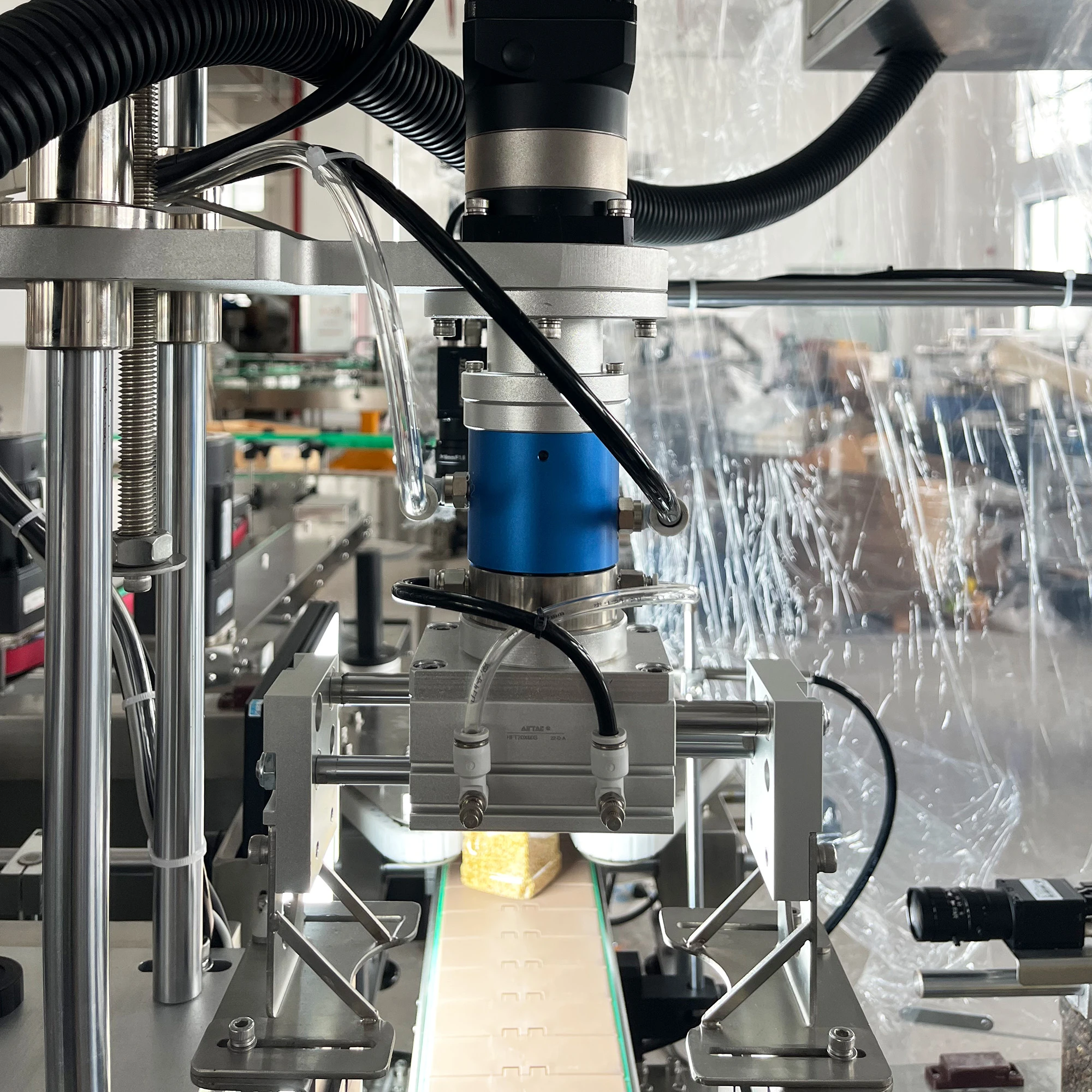

On a high-speed production line, the system captures images of the bottles using high-frame-rate industrial cameras and employs AI deep learning algorithms to precisely identify their orientation within milliseconds. A decision signal is instantly transmitted to the control system, triggering a downstream flipping mechanism to accurately rotate misaligned items, while correctly oriented items pass through smoothly and seamlessly; this ultimately ensures highly uniform product orientation and automated correction across the entire line.

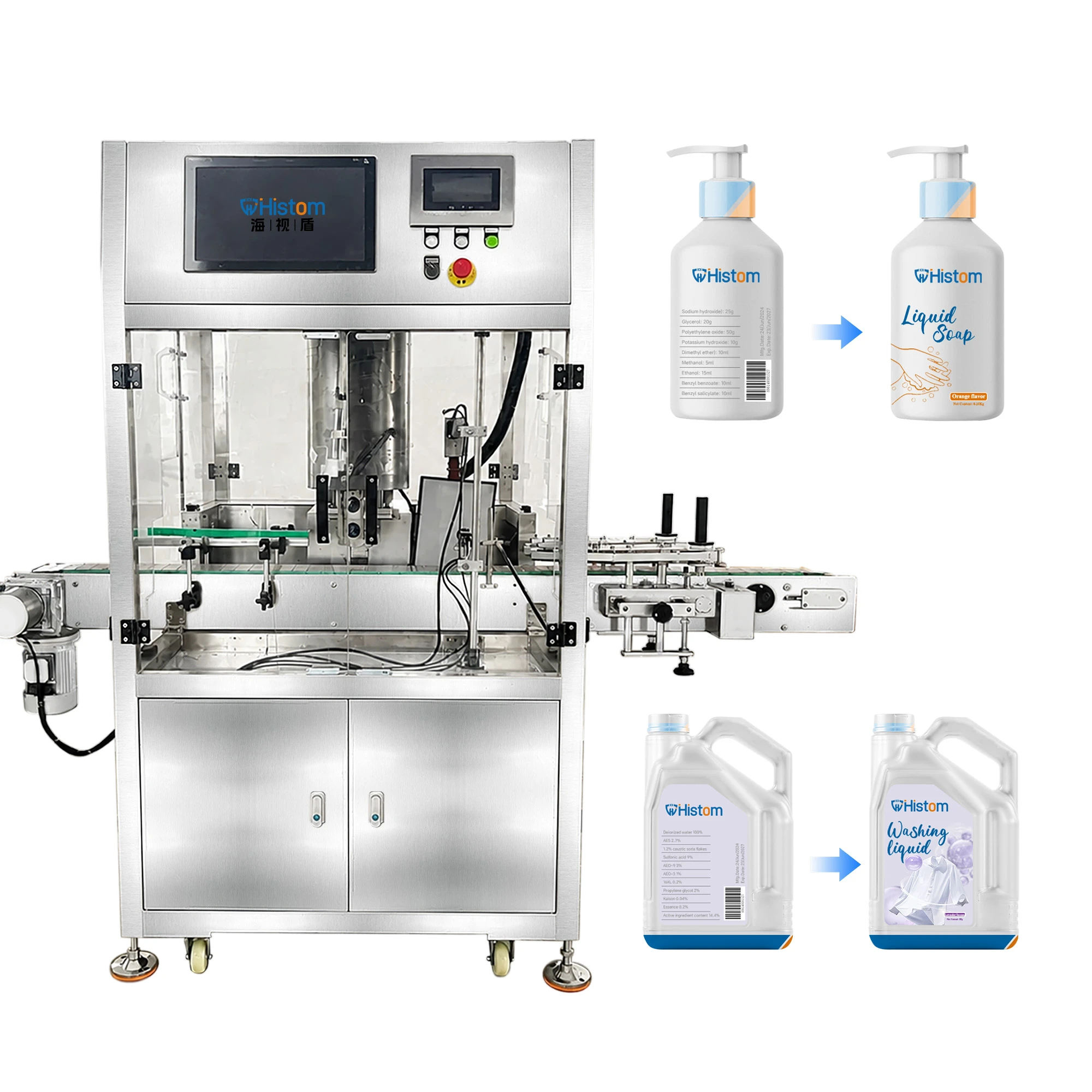

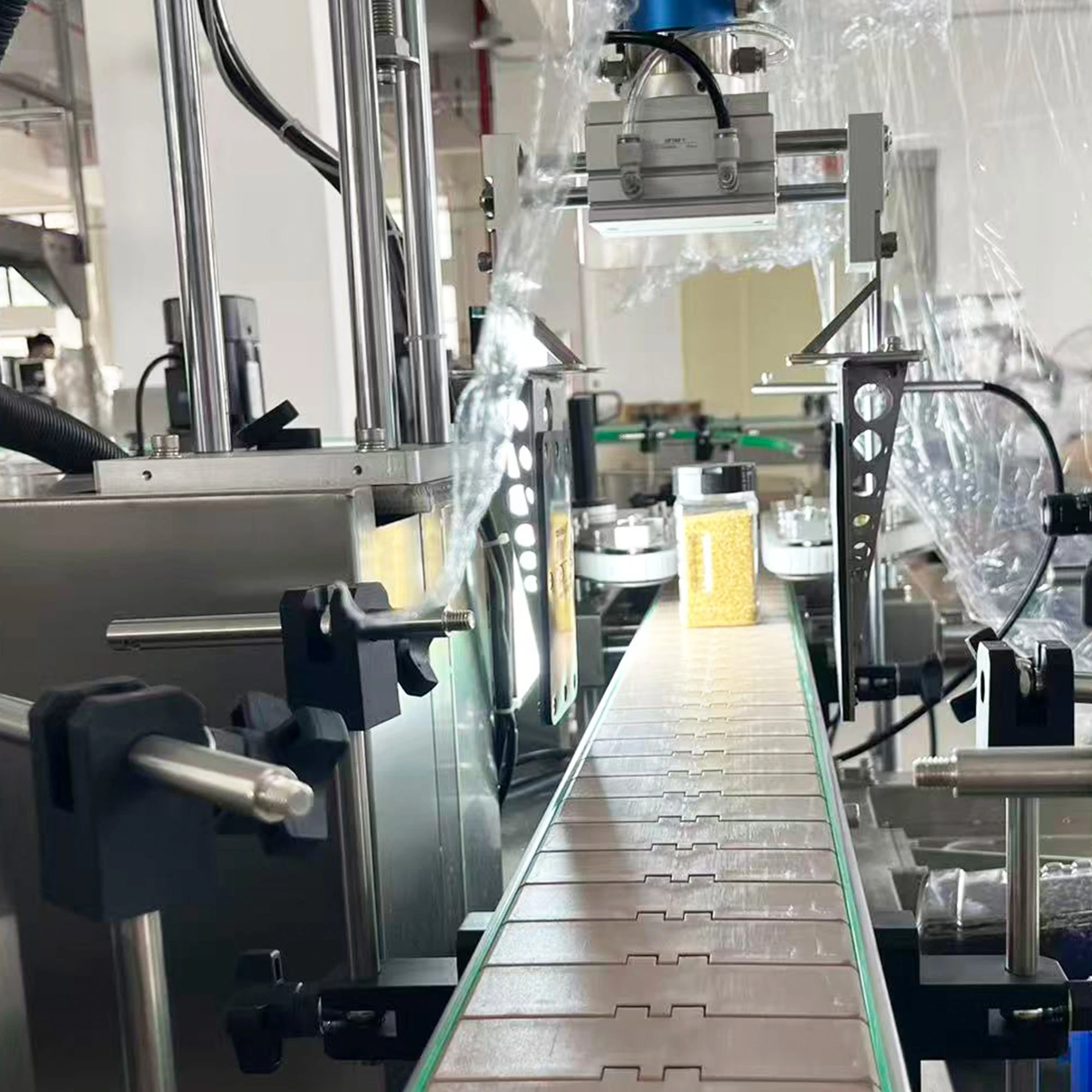

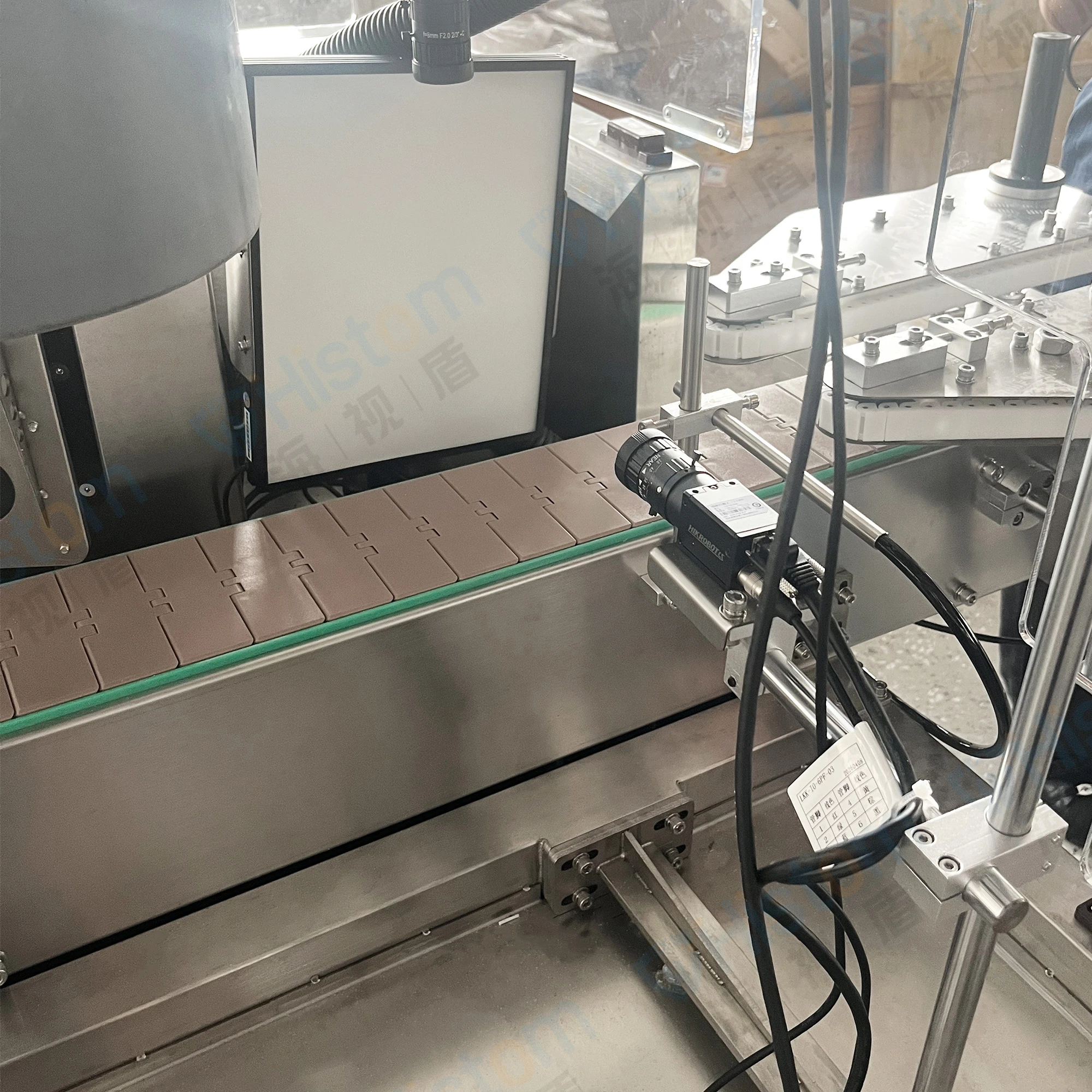

Bottle Vision directional inspection machine

Vision-Guided Bottle Orientation & Flipping in Action
