What Is a Bottle Orienting Machine?

In beverage and bottled food production, bottles may enter the production line in different orientations. If bottles are not correctly positioned, downstream labeling, printing, inspection, and packaging processes can become less efficient.


bottle orienting machine helps solve this problem by automatically identifying bottle orientation and aligning bottles to a preset direction. With vision technology and automated handling, manufacturers can improve production consistency and reduce the need for manual bottle adjustment.



How does bottle orientation equipment work?


Traditional bottle orientation processes may rely on mechanical guides or manual adjustments. In contrast, systems based on machine vision offer a more flexible solution: they automatically determine a bottle's orientation by identifying its specific features.


Histom’s AI-powered vision-based bottle orientation equipment utilizes machine vision and deep learning technology to recognize bottle characteristics and assess whether each bottle requires rotation or a positional adjustment.

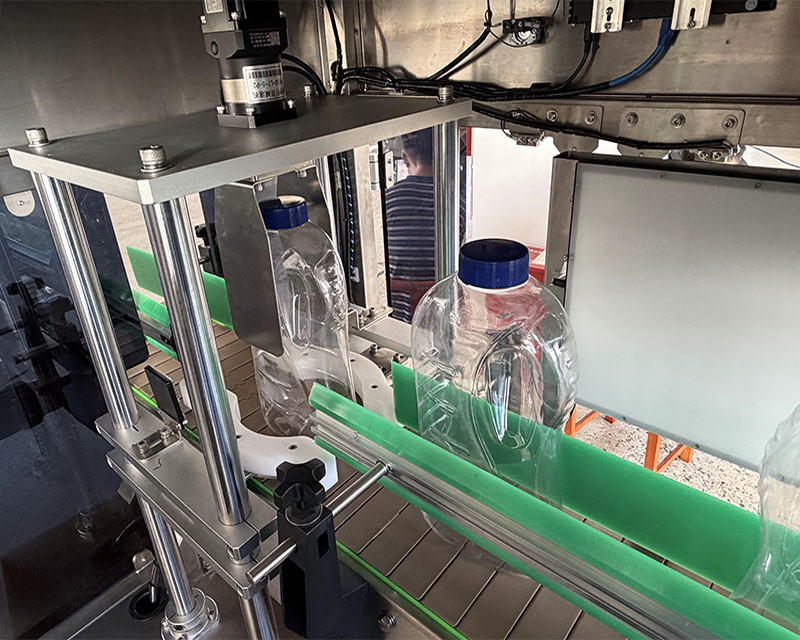

Based on the detection results, the equipment employs specific mechanisms—such as servo-driven grippers or dual-belt clamping devices—to adjust each bottle to the required orientation.

The system can support different bottle shapes and materials, including round, square, and irregular bottles, depending on the application and configuration. Remote technical access and online sample training also help adapt the vision system to different bottle types.



Why Is Automatic Bottle Orienting Important?


Accurate bottle positioning helps maintain a stable workflow across automated production lines. An automatic bottle orienting system can help manufacturers:

● Improve positioning consistency: Align bottles to a preset direction before the next production stage.

● Support automatic labeling and printing: Keep bottle orientation consistent for downstream processing.

● Reduce manual handling: Minimize the need for workers to reposition bottles individually.

● Adapt to different bottle designs: Configure the vision system for different bottle shapes and orientation requirements.

● Improve production efficiency: Help reduce positioning errors that may interrupt downstream operations.


For manufacturers handling multiple bottle designs, a vision-guided solution can offer greater flexibility than relying entirely on fixed mechanical positioning.



Applications in Beverage and Bottled Food Production


Bottle orienting equipment can be installed at appropriate points in a production line before labeling, inkjet coding, visual inspection, or packaging.


Typical applications include beverage bottles, bottled sauces, edible oil containers, and other bottled food products. The required orientation depends on the bottle design and the needs of the following process.


Histom's vision-based bottle orientation system can be integrated into existing production lines to help ensure bottles enter downstream equipment in the correct direction.


Explore Histom's Vision directional inspection machine to learn more about its vision-guided positioning technology and configuration options.


For manufacturers planning a complete inspection and automation process, Histom's bottle Inspection Solutions provide further information about equipment for different food production applications.



How to Choose the Right Bottle Orienting Equipment


Before selecting bottle orienting equipment, manufacturers should consider bottle shape and dimensions, material, line speed, required orientation, and available installation space.


It is also important to confirm how the system will connect with upstream conveying equipment and downstream labeling, coding, inspection, or packaging machines. Testing representative bottle samples can help verify recognition performance and determine the appropriate positioning mechanism.


A properly configured vision-guided system can help manufacturers handle different bottle orientations more consistently while supporting the automation needs of modern production lines.




Conclusion

A bottle orienting machine helps automate bottle positioning before labeling, coding, inspection, and packaging. By combining AI vision recognition with automated turning and alignment, Histom's vision-based solution helps manufacturers improve positioning consistency and integrate bottle handling into existing production processes.


For production lines handling different bottle designs, an automatic bottle orienting system can be a practical step toward more flexible and efficient automation.
